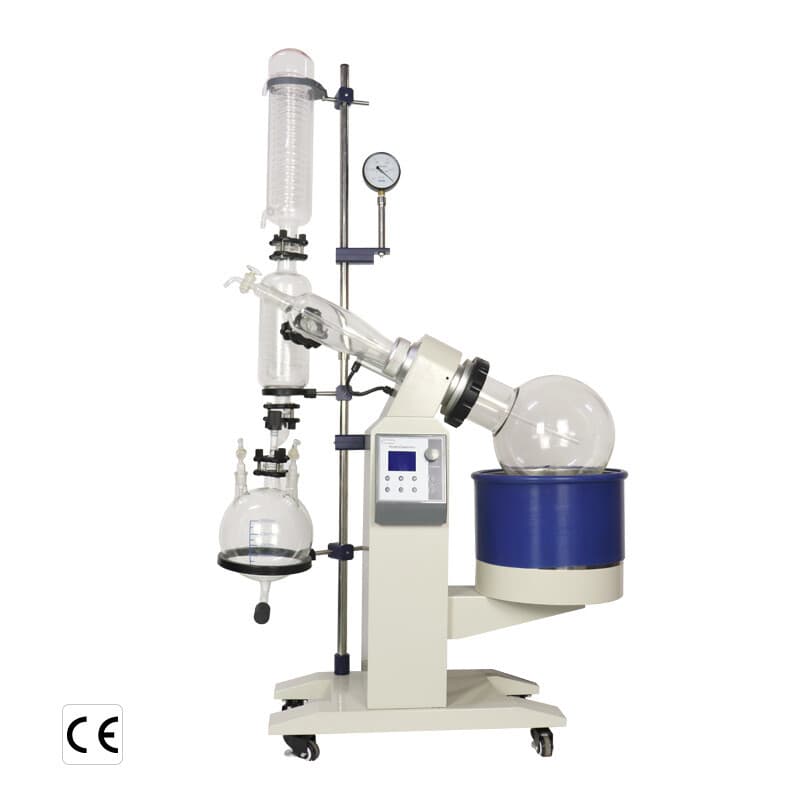

| Evaporator Type | Rotary Evaporator |
| Flask Capacity | 10L |
| Receiving Flask | 5L |
| Working Power Supply | 110V 60HZ (220V 50HZ optional) |
| Condenser | Vertical double condenser |
| Evaporation Rate | Water=3.2L/h,Alcohol=6.5L/h |
| Water Bath Pot Material | Stainless steel |
| Water Bath Pot Size | φ350×220(mm) |
| Lifting Mode | Automatic |
| Lift Stroke | 0~160mm |
| Heating Power | 3000W |
| Dimensions | 920×550×1700(mm) |
| Rotation Speed | 20~130 (RPM) |
| Rotary Electric Machine | Brushless 250W |
| Main Engine Speed Control | Digital frequency conversion stepless speed regulation |
| Water Bath Temperature Range | Ambient to 99°C (300°C) |
