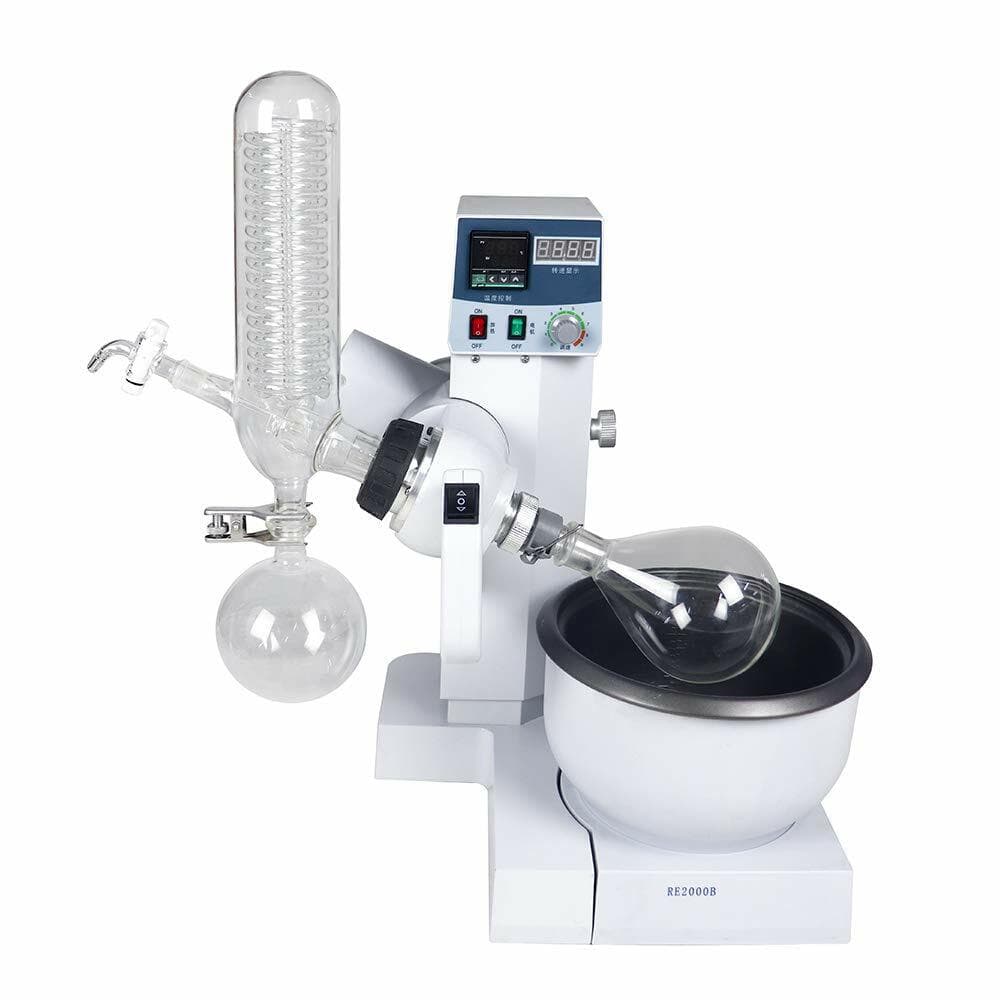

| Evaporator Type | Rotary Evaporator |
| Plug Type | US Plug |
| Flask Capacity | 2L 29#Conical Ground Joint(0.25L-2L optional) |
| Receiving Flask | 1L Ball Grinding Mouth(0.25L-2L optional) |
| Motor Power | 0.04 kW |
| Rotation Speed | 0-120 r/min, Digital Display |
| Lifting Mode | Motor Automatic Lifting |
| Lifting Height | 0-140mm |
| Wateroil Bath Power | 1.5 kW |
| Condensor | The double backflow integration standard condenser. |
| Bath Temperature Control Range | RT~180°C (RT-99°C/399°C optional) |
| Water Bath Size | φ230×130mm |
| Evaporation Rate | ≥1 L/H, H2O |
| External Size | 550×420×780(mm) |
| Vacuum Degree | 0.098Mpa |
| Glassware | High borosilicate |
| Temperature Accuracy | ±1°C |
| Sealing | PTFE, fluoro Rubber sealing |
