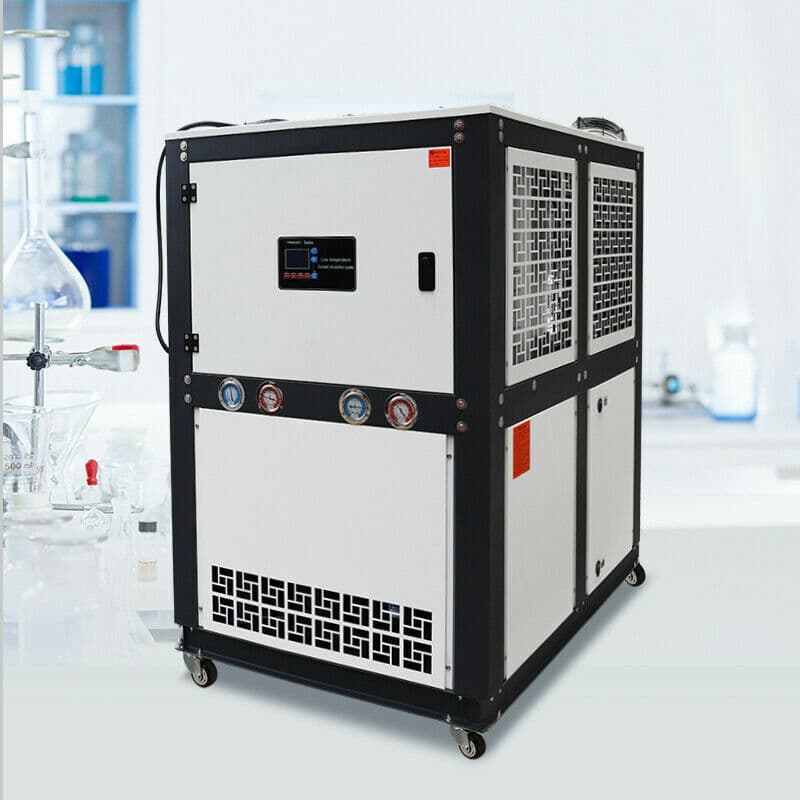

Model: DLSB 50L -120℃
MTST DLSB 50L refrigerated recirculating chiller reaching -120°C with a 35 L/min closed-loop pump for cooling lab instruments and reaction systems.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The MTST DLSB 50L is a low-temperature recirculating chiller designed to supply chilled fluid to laboratory and processing equipment. It uses a hermetically sealed, air-cooled compressor with R404A/R23 refrigerant and reaches a no-load minimum temperature of -120°C, with temperature fluctuation rated at ±2°C.
The unit operates as a closed cooling system with a built-in thermostat and circulation pump rated at 35 L/min, so it does not require a separate water supply line in the lab. A digital temperature display and microprocessor controller manage the setpoint.
It is intended for labs that need reliable low-temperature cooling for rotary evaporators, distillation setups, reactors, and analytical instruments during continuous operation.
The chiller uses mechanical refrigeration to cool a circulating fluid, which is pumped through a closed loop to the connected instrument and returned to the reservoir. A microprocessor controller and thermostat hold the setpoint while the compressor removes heat, allowing reactions or processes to be maintained at low temperature.
