Question 1

What is the difference between a muffle furnace and a tube furnace?

Accepted Answer

A muffle furnace heats an enclosed box-shaped chamber and is built for batch work such as ashing, calcination, and heat-treating crucibles or small parts, isolating the load from combustion gases. A tube furnace heats a cylindrical work tube, which makes it well suited to passing a controlled or inert atmosphere over the sample and to continuous or flow-through processing. Choose the muffle for general batch heating and the tube for atmosphere-controlled work.

Question 2

How hot can these furnaces actually get, and what limits the temperature?

Accepted Answer

Furnaces in this category run from roughly 1100C up to about 1700C, and the heating element sets the ceiling. Silicon carbide (SiC) elements cover the mid-range, while molybdenum disilicide (MoSi2) elements reach the highest 1700C-class temperatures. Remember that the rated maximum is not the recommended continuous setpoint; sustained operating temperature is lower, so select a furnace with headroom above your routine target for element longevity.

Question 3

When do I need a vacuum furnace instead of a muffle furnace?

Accepted Answer

Choose a vacuum furnace when the material must be processed without oxidation or contamination from air, such as in certain sintering, brazing, annealing, or advanced materials work where surface oxidation would ruin the result. A standard muffle furnace operates in air, which is fine for ashing and many calcination tasks. If your process specifies an inert or evacuated environment, a muffle furnace cannot substitute for a vacuum furnace.

Question 4

What is a muffle furnace used for in sample preparation?

Accepted Answer

Muffle furnaces are the standard tool for ashing and loss-on-ignition testing, where a sample is heated until all organic matter combusts and only inorganic ash remains for weighing or analysis. They also handle calcination of powders, heat treatment, and burning off binders. The enclosed chamber keeps the load separated from fuel combustion products, giving clean, repeatable high-temperature exposure for gravimetric and materials-prep workflows.

Question 5

Can I run an inert or controlled atmosphere in these furnaces?

Accepted Answer

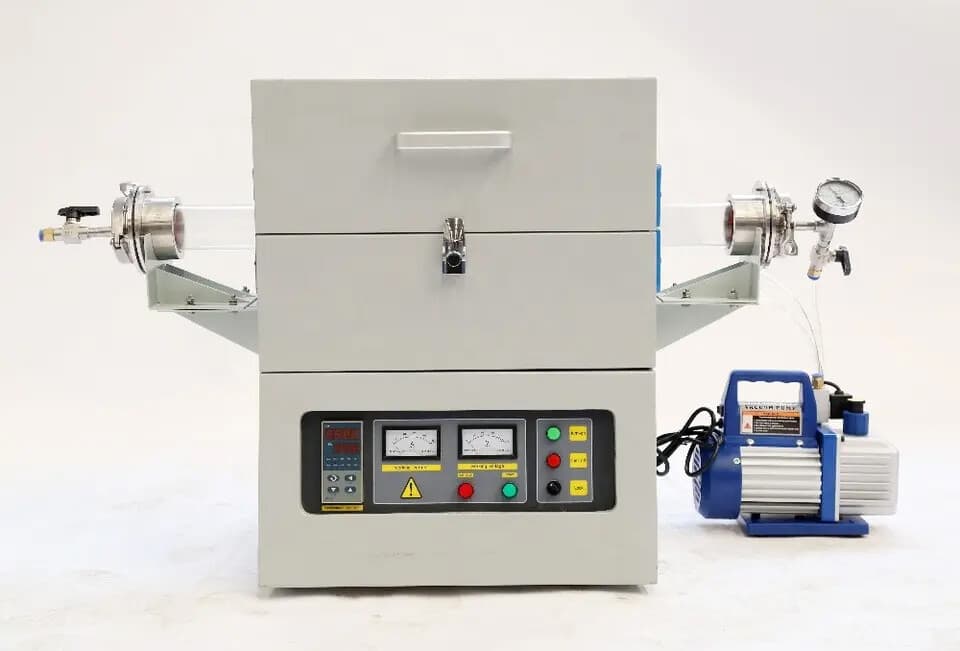

Tube furnaces are designed for it: the sealed work tube lets you flow nitrogen, argon, or another gas over the sample to control the atmosphere. Vacuum furnaces go further by evacuating air entirely. A standard muffle furnace operates in ambient air and is not intended for inert-gas work unless specifically configured for it. Match the format to your atmosphere requirement rather than trying to adapt an air furnace.

Question 6

How do I size a furnace for my application?

Accepted Answer

Start with peak temperature and add headroom above your routine setpoint, since continuous operation runs below the rated maximum. Then match chamber volume or work-tube diameter and length to your sample size and throughput, allowing room for crucibles, boats, or fixtures. Finally consider atmosphere needs, ramp-rate and program control, and temperature uniformity across the load. Oversizing the chamber wastes energy and time; undersizing constrains the work you can run.
