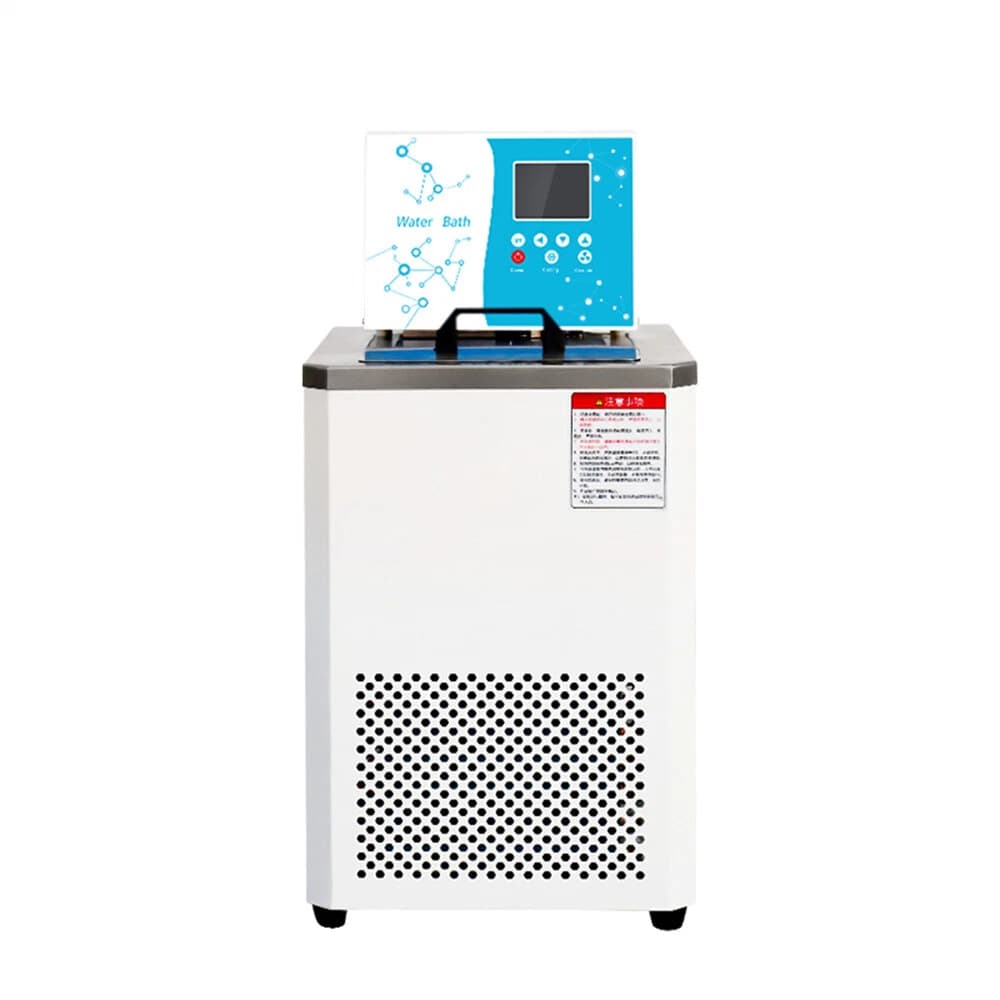

The ZZKD DC-0510 is a 10-liter low-temperature circulating bath that both heats and refrigerates, covering an operating range of -5C to 100C. With a 1300W rating and a 10L reservoir, it is built to maintain stable fluid temperatures over extended runs.

The unit circulates temperature-controlled fluid through external equipment, making it suitable for cooling rotary evaporator condensers in the 5L to 10L range or feeding small jacketed reactors. Temperature stability is rated at ±0.05C with a resolution of 0.01C.

This bath is intended for processing and extraction labs that need consistent cooling or heating for glassware and reactor work.

How It Works

The bath holds fluid in a 10L reservoir and uses an integrated pump to circulate it through connected equipment such as a condenser or reactor jacket. Heating and refrigeration elements bring the fluid to the set point within the -5C to 100C range, while feedback control holds it to within ±0.05C.

Key Features

• 10L fluid reservoir for added thermal stability on longer runs
• Operating range of -5C to 100C with both heating and refrigeration
• Temperature stability rated at ±0.05C and resolution of 0.01C
• Circulation pump with a flow rate of approximately 6L/min
• Pump head rated at 4.59 ft
• Overall dimensions of 320 × 370 × 765 mm

Applications

• Cooling condensers on 5L to 10L rotary evaporators
• Feeding temperature-controlled fluid to small jacketed reactors
• Maintaining set-point temperatures for glassware during processing
