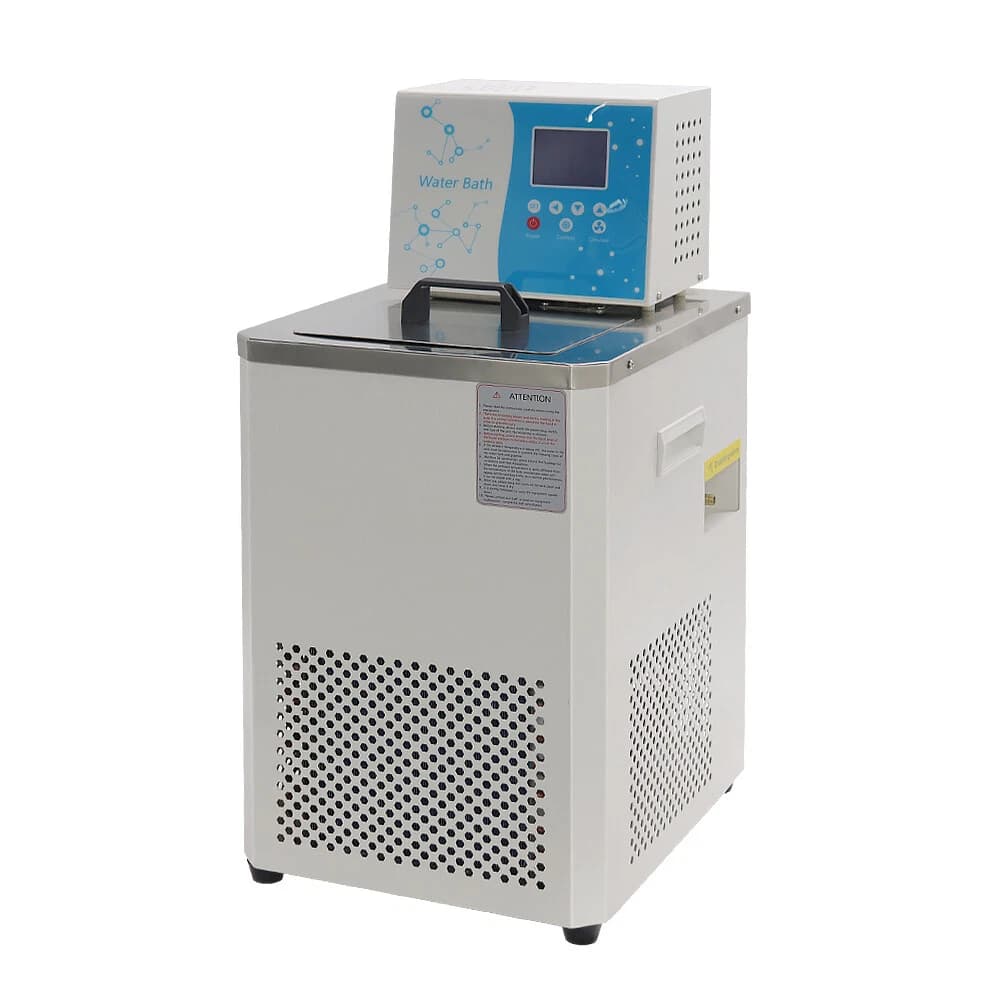

1 / 17The Swiben DC-4006 is a benchtop recirculating chiller and heating circulator with a 6L stainless steel tank. It operates across a temperature range of -40°C to 100°C and is built to hold fluctuation within ±0.05°C, with a display resolution of 0.01°C.
The unit supports both internal and external circulation, allowing it to maintain bath temperature or feed a connected piece of equipment such as a reactor jacket or condenser. A circulating pump delivers a flow rate of 6 L/min (about 2.11 GPM) at a pump head of roughly 4.59 ft.
It is intended for laboratories and processing environments that need controlled heating or cooling for samples, instruments, or downstream apparatus.
A refrigeration compressor and heating element bring the working fluid in the tank to the set temperature, regulated by PID control and a PT100 sensor for stability. The integrated pump then circulates the fluid internally within the bath or externally to connected equipment, providing a continuous controlled-temperature loop.
Model: DC-4006
A 6L refrigerated and heated recirculating circulator with a -40 to 100°C range and ±0.05°C stability for laboratory temperature control.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
