1 / 23The MTST GDX-10/10 is a combined high/low temperature circulating device that integrates a low-temperature cooling liquid pump and a high-temperature oil bath in a single machine. It operates across a temperature range of -10 to 199°C with a 10L working capacity.
The unit uses a sealed, closed liquid loop with a mechanically connected expansion vessel that stays isolated from the circulating medium. This design limits exposure to water vapor at low temperatures and oil mist at high temperatures, and keeps the medium in the expansion vessel below 60°C regardless of loop temperature.
It is intended for laboratory and research environments in fields such as biochemistry, chemistry, medicine, environmental work, and academic research.
The device circulates heat-transfer fluid through a closed, sealed loop using an integrated circulating pump rated at 100 W, delivering up to 20 L/min flow with a 6 m lift. A combined heating and cooling container provides a large heat-exchange area, allowing the same unit to heat with 2000 W and cool with a capacity of 920 to 2150 W. An expansion vessel accommodates fluid volume changes while remaining isolated from the active circulation.

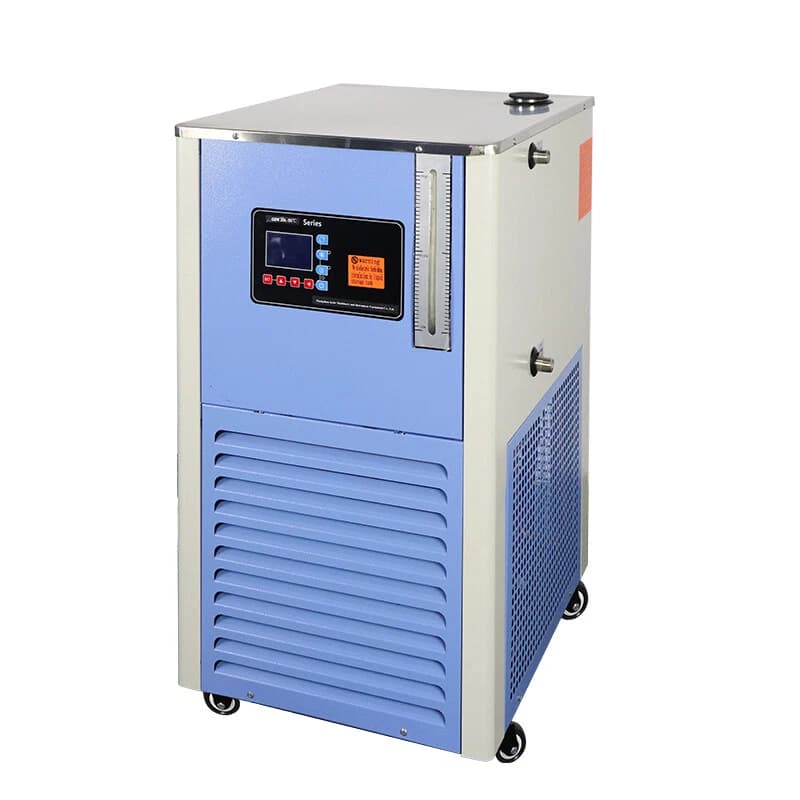

Model: GDX-10/10
Integrated heating and cooling circulator with a 10L bath and a -10 to 199°C range, combining a low-temperature circulating pump and high-temperature oil bath in one unit.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
