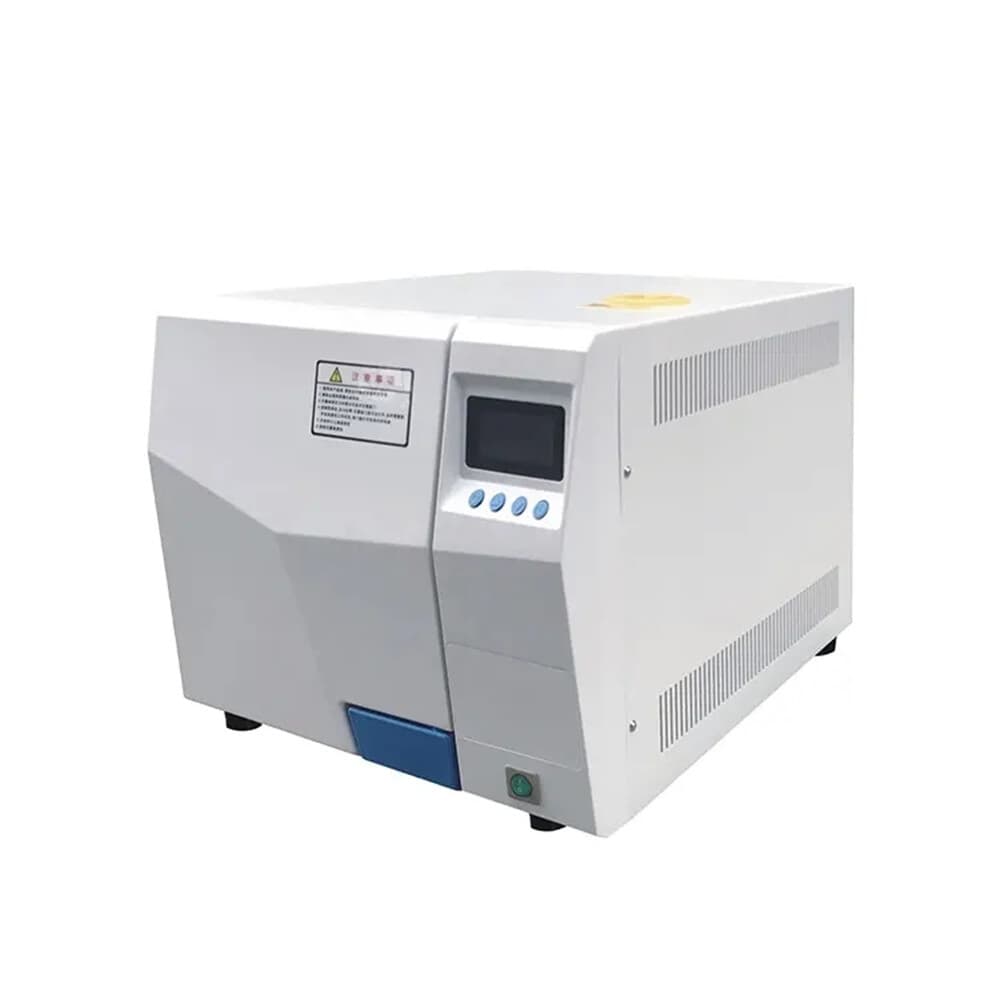

Model: TM-XD20D(20L)
JIBIMED TM-XD20D steam autoclave with a 20L/24L chamber, adjustable 105-134°C operation, and a 0-60 minute timer.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The JIBIMED TM-XD20D is a steam sterilizer (autoclave) with a chamber capacity of 20L or 24L, depending on configuration. The cylindrical chamber measures φ250×420mm (20L) or φ250×520mm (24L) and accommodates glassware, tools, and small lab items in each cycle.
Operating temperature is adjustable from 105°C to 134°C with a working pressure of 0.22 MPa, and temperature accuracy is held to within ±1°C. A 0-60 minute timer allows cycle duration to be set for the load being processed.
The unit is intended for laboratory and processing environments that require sterilization of equipment and instruments under controlled steam conditions.
The autoclave generates pressurized steam inside a sealed chamber, raising temperature to as high as 134°C at 0.22 MPa. Holding instruments at these conditions for the set timer interval inactivates biological contaminants on the load surfaces.
