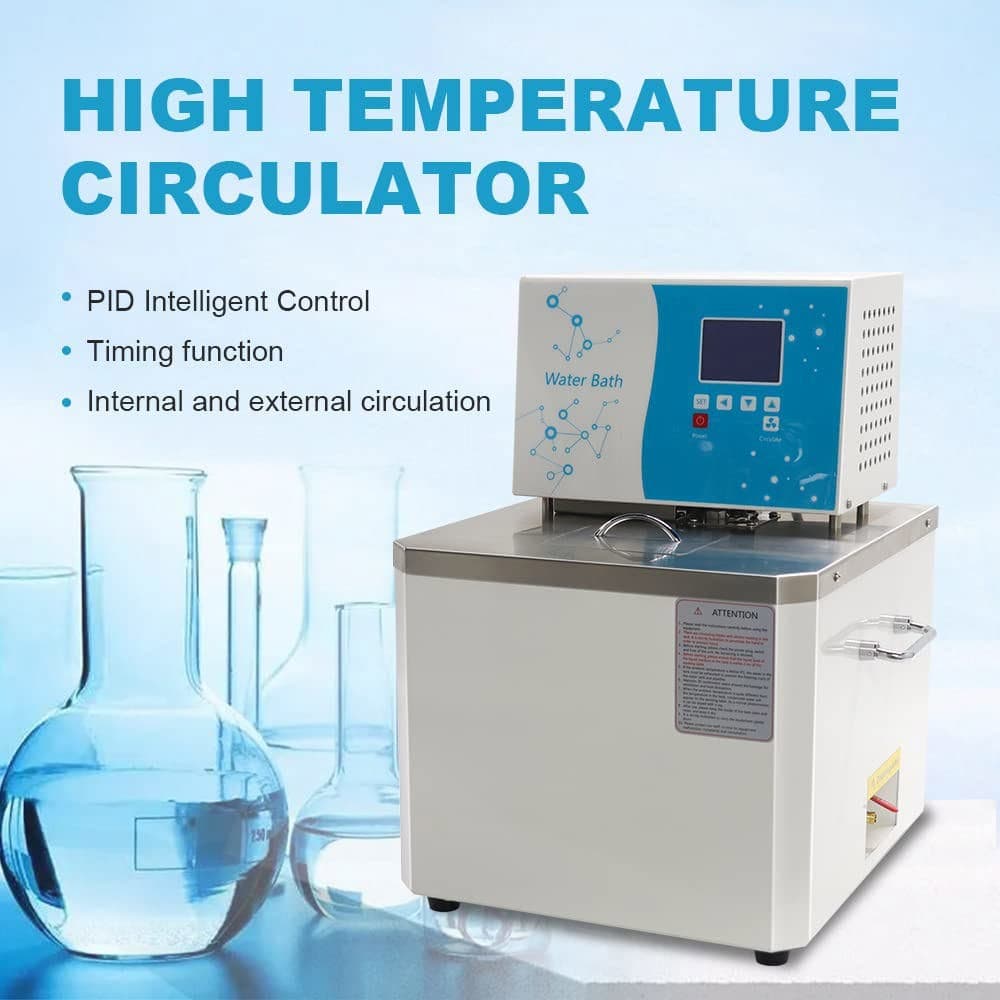

Swiben 10L High-Temperature Thermostatic Circulator — RT~300℃
Model: 0606267299166
10L heated water/oil bath circulator with a range of RT to 300℃, 2 kW heating, and a 15 L/min circulation pump for jacketed reactors and high-temperature processes.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The Swiben 10L thermostatic circulator is a heated water or oil bath designed to supply controlled high-temperature fluid to external equipment. It covers a temperature range from ambient up to 300℃ and uses a 2 kW heating element with an integrated circulation pump rated at 15 L/min.
The unit is operated through a large LCD display and supports temperature setpoint correction for accuracy down to 0.1℃. It is intended for chemical, semiconductor, and general laboratory work where uniform, stable heating of reactants is required.
With its 10L liquid reservoir and external circulation capability, the circulator is suited to laboratories running jacketed reactors, distillation setups, and other temperature-dependent processes.
How It Works
Working fluid (water or oil) is added to the 10L reservoir and heated by a 2 kW element to the programmed setpoint. The built-in pump circulates the fluid at up to 15 L/min through connected external equipment such as a reactor jacket, with the bath outlet feeding the equipment inlet. A controller maintains the setpoint and provides over-temperature protection and alarm functions.
Key Features
- 10L liquid reservoir for water or oil working fluids
- Temperature range from ambient up to 300℃
- 2 kW heating power with 110V operation
- External circulation pump rated at 15 L/min
- Large LCD display with setpoint deviation correction to 0.1℃
- Over-temperature protection with alarm and automatic load cutoff
- Optional cold-water circulation accessory for rapid in-system cooling
Applications
- Heating jacketed glass or stainless reactors
