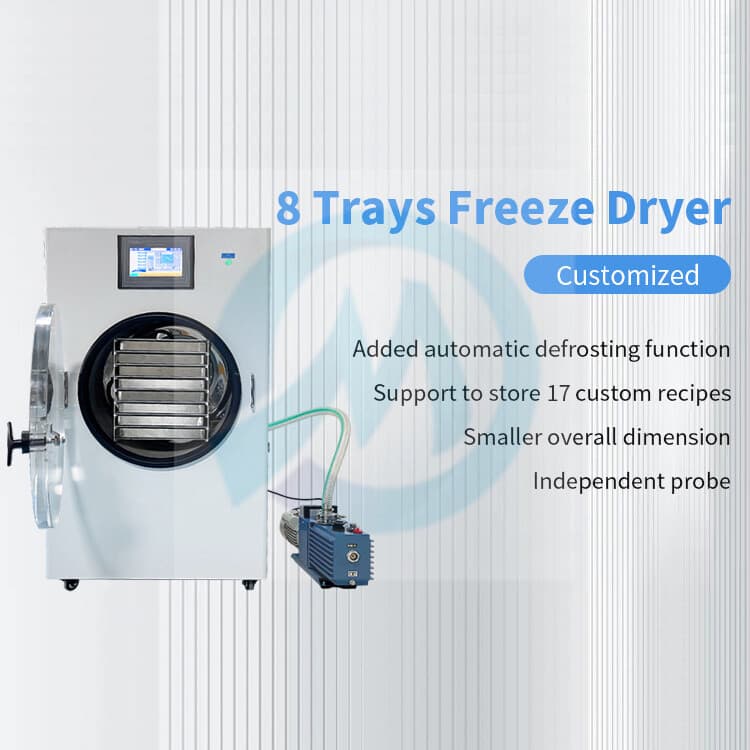

1 / 35The MTST HFD-10 is a vacuum freeze dryer (lyophilizer) built for laboratory-scale processing. It offers a drying area of 0.92 m² and handles 10-12 kg per batch, with a water-harvesting ability of about 10 kg over 24 hours.
The unit uses an LCD control system with programmable heating and temperature control, allowing operators to set and monitor the freeze-drying cycle. A transparent organic-glass drying chamber door lets the process be observed while it runs.
It is intended for users who need gentle, low-temperature drying of sensitive materials such as biological samples, extracts, and other solid or liquid preparations where high-temperature drying is unsuitable.
Vacuum freeze drying removes water or solvent from a frozen sample by sublimation under vacuum. The sample is held at low temperature while the chamber is evacuated, so frozen water passes directly to vapor and is captured on the condenser. This avoids the heat exposure of conventional drying and helps preserve the original characteristics of heat-sensitive materials.
Model: HFD-10
Benchtop vacuum freeze dryer with 0.92 m² drying area, 10-12 kg per batch capacity, and an LCD-controlled, programmable temperature system.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
