Model: CHEMICALRESISTANTDIAPHRAGMVACUUMPUMPOILFREEVACUUMPUMP2MBAR115L/MINPRODUCTFEATURES

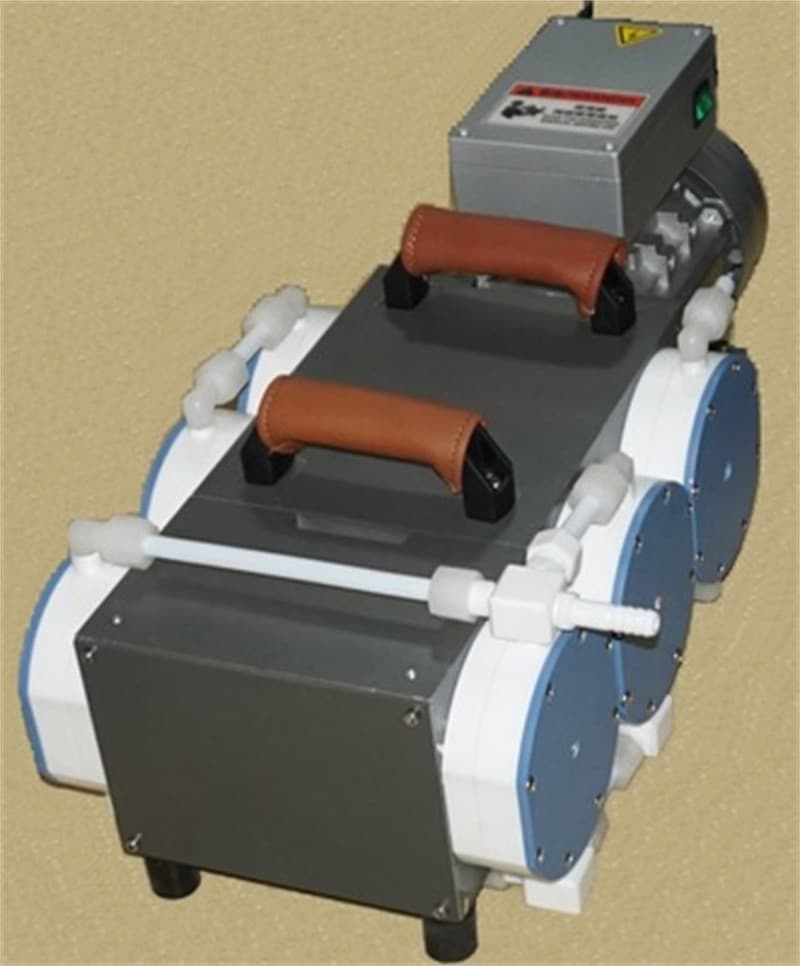

Oil-free chemical-resistant diaphragm vacuum pump rated to 2 mbar with a 115 L/min pumping speed and PTFE-coated wetted parts.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
This DenverVac diaphragm vacuum pump is built for corrosive vapor handling in chemistry and extraction labs. It runs dry, so there is no oil contamination of the process or exhaust, and its wetted components use chemically resistant materials.
The unit reaches an ultimate vacuum of 2 mbar with a pumping speed of 115 L/min, driven by a 530 W, 220 V single-phase motor. An all-aluminum enclosure houses both the motor and pump body, and the compact 600 x 255 x 220 mm footprint suits bench-top installation.
It is intended for labs that need a maintenance-friendly, oil-free vacuum source for aggressive chemical environments and continuous-duty operation.
The pump uses a multi-stage diaphragm head arrangement (three-stage, eight-pump-head configuration). A flexible PTFE-coated EPDM diaphragm moves up and down to draw and compress gas through PTFE/FFKM composite valve plates, so only chemically resistant surfaces contact the pumped vapors. Because no lubricating oil is required, the gas path stays oil-free, and an internal brushless cooling fan limits motor and diaphragm temperature rise during extended runs.
