Model: 0650985425604
Two-stage oil-sealed rotary vane vacuum pump, model 2XZ-2, rated to 0.06 Pa on 110V. Compact pump for lab vacuum and pre-pump duties.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.

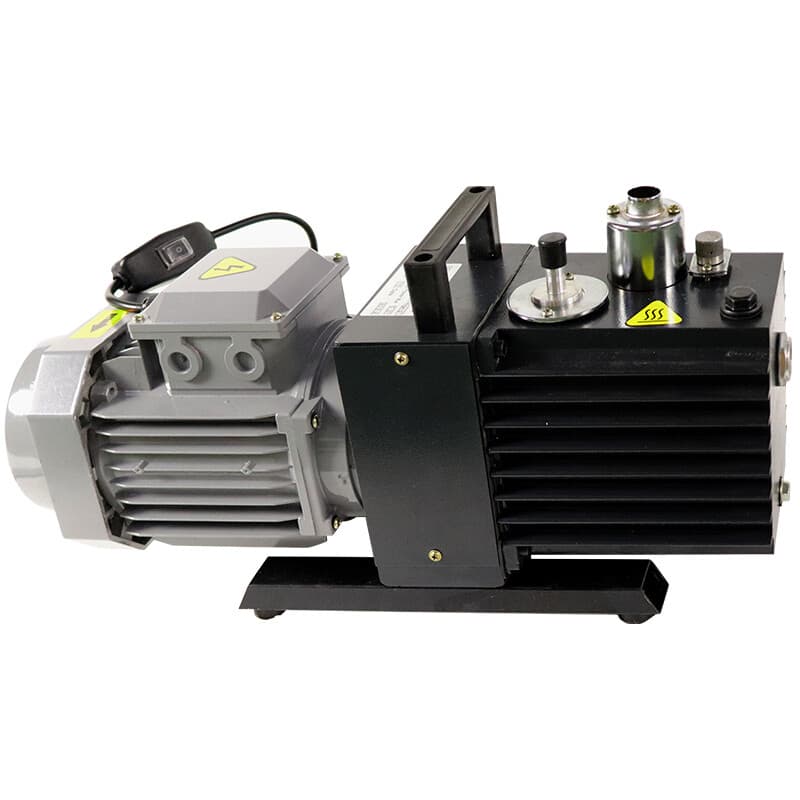

This is a 2XZ-2 two-stage oil-sealed rotary vane vacuum pump with a direct-connect design and a rated ultimate pressure of 0.06 Pa. It runs on 110V and is built for general laboratory vacuum applications.
The pump features bearings on both sides of the rotor and includes gas ballasting to help purge solvent vapors during operation. Its compact, lightweight construction and low noise level make it suited to bench and process work.
The 2XZ-2 can operate on its own or serve as a backing pump for diffusion, molecular, booster, or titanium pumps. Note that it is not intended for use as a compression-type delivery pump.
As an oil-sealed rotary displacement pump, the rotating vanes draw and compress gas through the chamber, with the outlet valve oil-sealed for sealing. The inlet is configured as a vacuum safety valve that remains open during operation. Gas ballasting can be used to remove solvent vapor from the pumped stream.
