Model: 0606267299562
Laboratory vacuum freeze dryer with a -60°C condenser, 7-inch touch display, and a 2XZ-2 rotary vane vacuum pump for sublimation drying of water-containing materials.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.

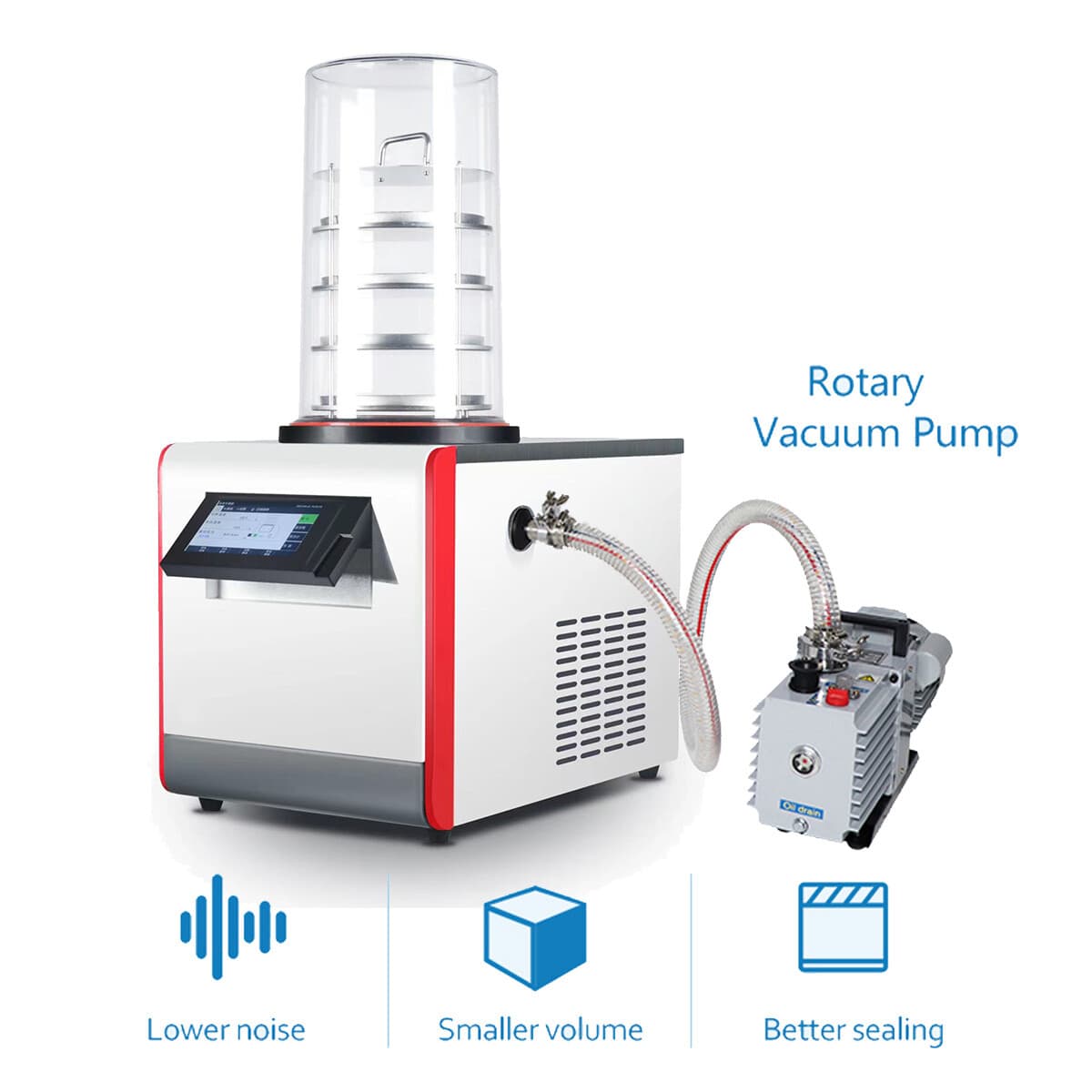

The 10N-60 is a bench-scale vacuum freeze dryer (lyophilizer) intended for laboratory use. It pairs a transparent bell-type drying chamber with a cold trap rated below -60°C and a 7-inch color LCD touch screen that displays the drying curve during a run.
The system removes water from pre-frozen materials by sublimation under vacuum, allowing samples to be stored and later reconstituted. It is supplied with a 2XZ-2 rotary vane vacuum pump and is configured for lab, chemical, and food sample work.
The drying chamber is integrally formed to reduce leakage points, and the cold trap includes a pre-freezing function so a separate low-temperature freezer is not required.
Water-containing material is first frozen, then placed under vacuum where the ice sublimates directly from solid to vapor. The vapor is captured on the cold trap, which operates below -60°C, while the rotary vane vacuum pump maintains the chamber vacuum (below 5 Pa). An internal heat exchanger lowers the cold trap temperature to improve water capture.
