Model: 12N-60A
Laboratory freeze dryer with a condenser below -60°C, roughly 0.12 m² drying area, and multiple tray positions for batch lyophilization.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.

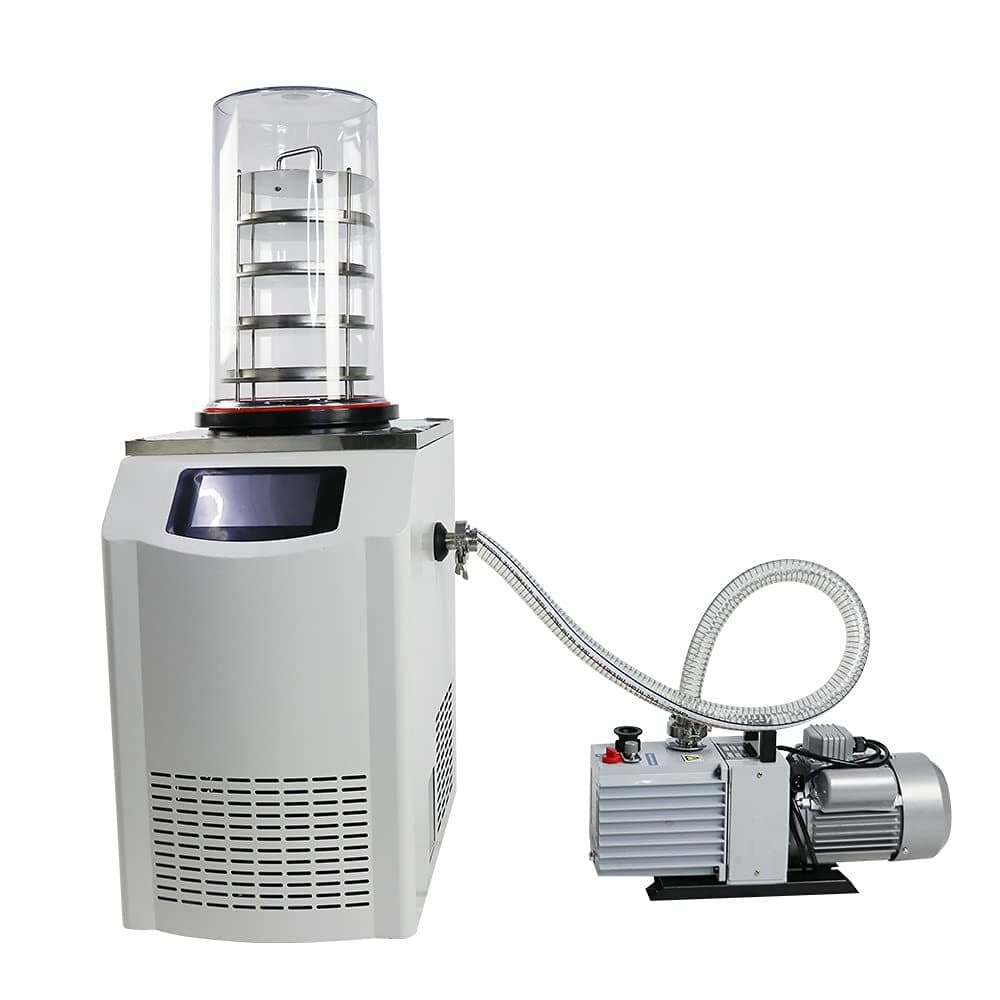

The MTST 12N-60A is a laboratory freeze dryer (lyophilizer) designed for batch processing of materials by sublimation drying. It provides approximately 0.12 m² of drying area across multiple trays, with 70 mm tray spacing to accommodate loaded samples.
The unit operates with a condenser temperature below -60°C (a -80°C configuration is listed as optional) and a vacuum level below 10 Pa. It runs on 110V/60Hz, with a 220V option, and draws 950 W.
This configuration suits labs that need additional shelf area for higher-volume runs while retaining bench-scale dimensions of 420×550×700 mm.
Freeze drying removes moisture by freezing the sample and then reducing pressure so that water sublimates directly from solid to vapor. The vapor collects on the cold condenser, held below -60°C in this unit, while the vacuum system maintains pressure under 10 Pa to support the process.
