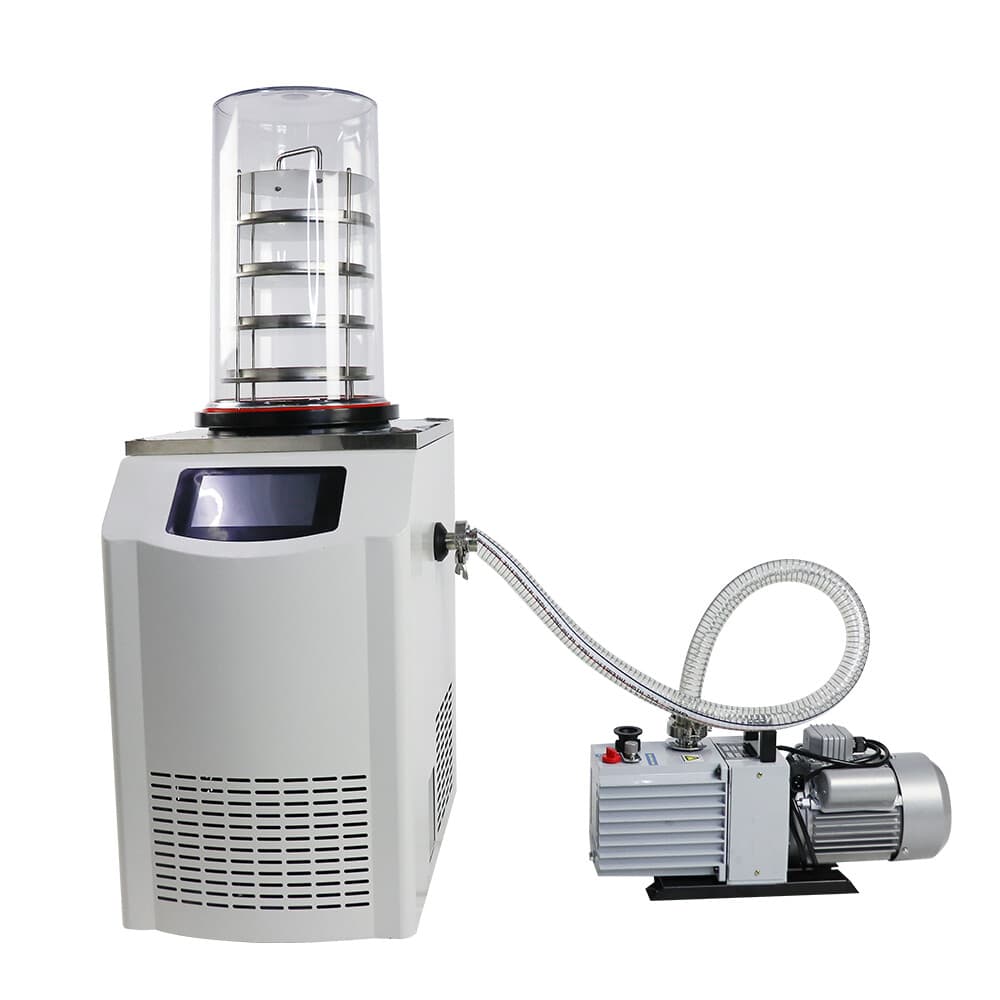

1 / 13The ZZKD 12N-80A is a benchtop vacuum freeze dryer designed for laboratory lyophilization. It pairs a cold trap rated below -80°C with a 0.12 m² drying area across four 200 mm trays, providing 1.5 L of tray capacity and a stated water capture ability of 4 kg.
The system uses a 7-inch touch-screen interface for setpoint entry and process monitoring, and supports freeze-drying curve recording. An additional sensor set allows sample temperature measurement and data logging. The unit is supplied with a 2XZ-2 rotary vane vacuum pump.
This equipment is suited to labs that need to dry frozen samples while preserving structure and volume, including research and processing applications.
Freeze drying removes water by sublimation. The sample is first frozen, then placed under vacuum where the ice converts directly to vapor without passing through a liquid phase. The water vapor is captured on the low-temperature condenser (cold trap), while the vacuum pump maintains the reduced pressure required for the process. Keeping material frozen throughout drying helps retain the original form and volume.
Model: 12N-80A
Benchtop lyophilizer with a cold trap below -80°C, 0.12 m² drying area, and 4 kg water capture. Includes a 2XZ-2 rotary vane vacuum pump.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
