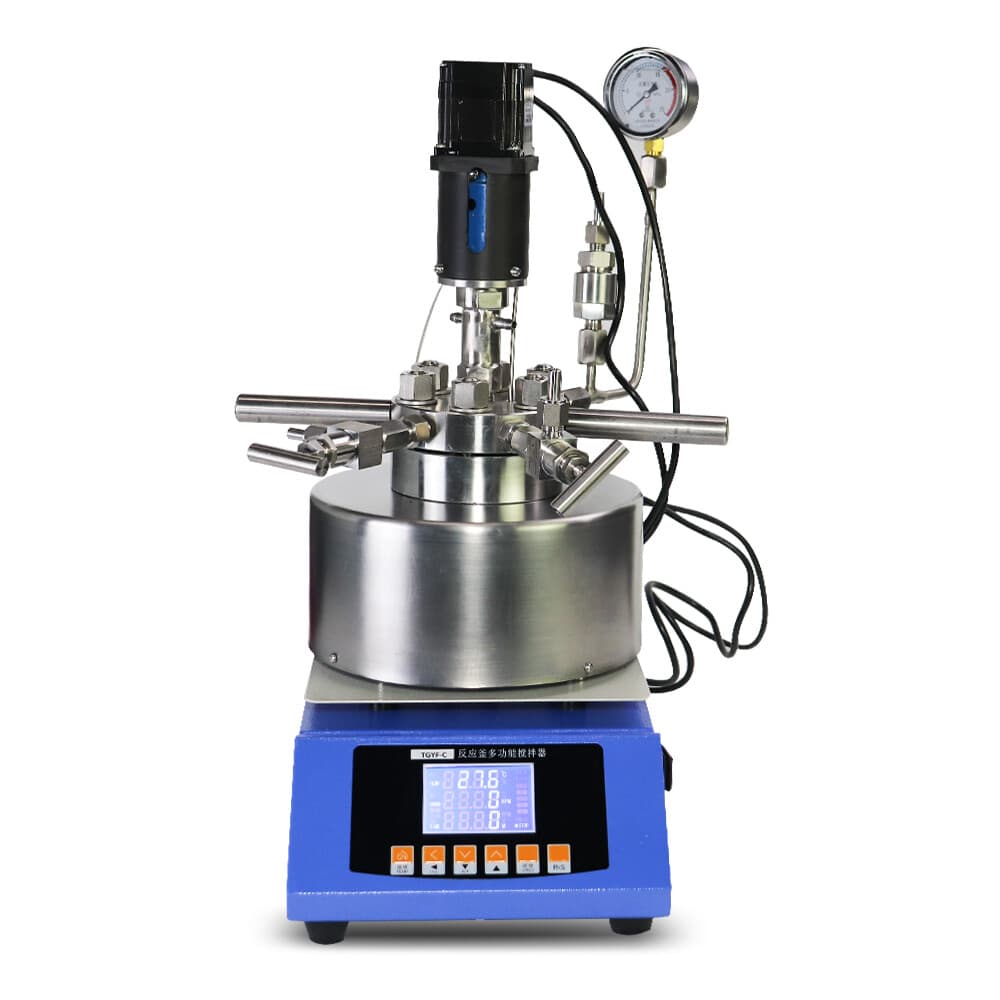

1 / 25The MTST TGYF-C-1000 is a benchtop stainless steel high pressure reactor with a 1000 ml vessel that integrates stirring, heating, and pressurized reaction in a single unit. It is built from SS304 and rated for pressures up to 22 MPa (3190 PSI) and a design temperature of 350°C.
A static sealing structure keeps the reaction medium and mixing components fully enclosed, which suits work with flammable, volatile, or toxic media. An LCD shows stirring speed and temperature, with parameter buttons for adjustment.
The unit is intended for research laboratories in universities, environmental, biochemical, and medical research settings that need controlled small-volume high pressure reactions.
A magnetic heating mantle heats the SS304 vessel under PID-style temperature control while a DC motor drives the stirrer at speeds up to 1800 r/min. The magnetic coupling and static seal isolate the medium from the drive, preventing leakage during pressurized reactions. The reactor body separates quickly from the heater so it can be cooled after a run. The vessel is closed with a main nut that compresses a gasket or tapered sealing surface.
Model: TGYF-C-1000
Benchtop 1000 ml SS304 high pressure reactor combining stirring, heating, and sealed reaction. Rated to 22 MPa and 350°C with magnetic-coupled mixing.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
