Model: FCF-20
20 L stainless steel high-pressure stirred reactor autoclave rated to 22 MPa and 350°C, with PID control and magnetically coupled stirring.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.

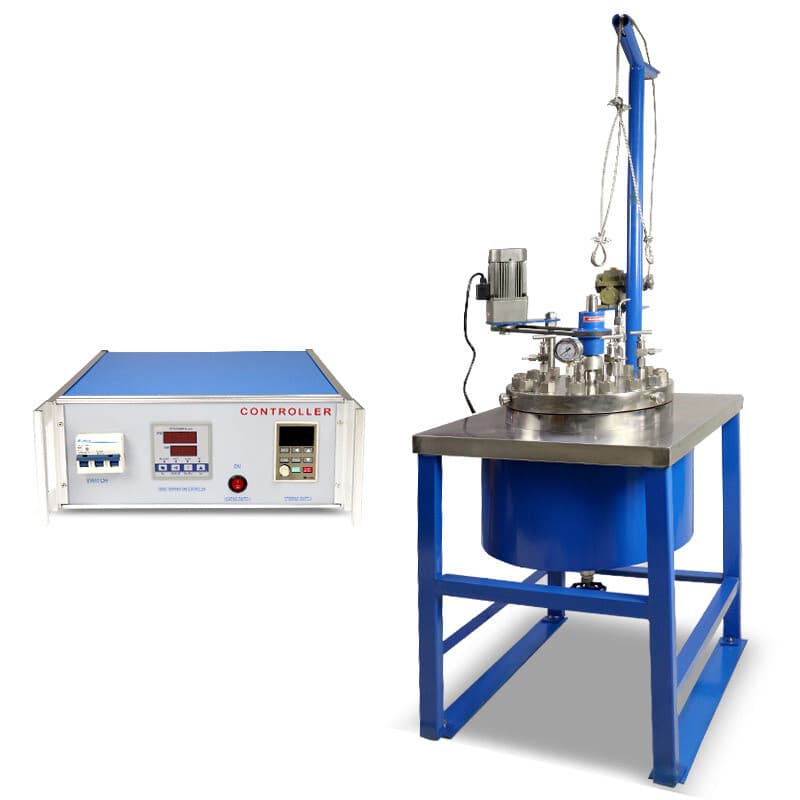

The MTST FCF-20 is a 20-liter high-pressure stirred reactor autoclave built for chemical reactions involving gas-liquid, liquid-liquid, liquid-solid, and gas-liquid-solid phases. It is rated for pressures up to 22 MPa and temperatures up to 350°C, with PID temperature control accurate to ±1°C.
Constructed from 304 stainless steel, the vessel uses a static sealing structure and a magnetically coupled stirring drive to eliminate shaft leakage. This makes it suitable for handling flammable, toxic, or penetrating media in petroleum, organic synthesis, polymer, and related processing work.
The unit includes a manual lifting device using a turbine reducer and wire rope to raise the kettle lid, and is configured for 220V single-phase, 220V three-phase, or 380V three-phase power.
Material is loaded into the sealed vessel and stirred by a motor that transmits torque through a magnetic coupling, keeping the medium and the stirring element fully enclosed. Heating to setpoint under elevated pressure, combined with continuous agitation, strengthens mass and heat transfer for the reaction.
