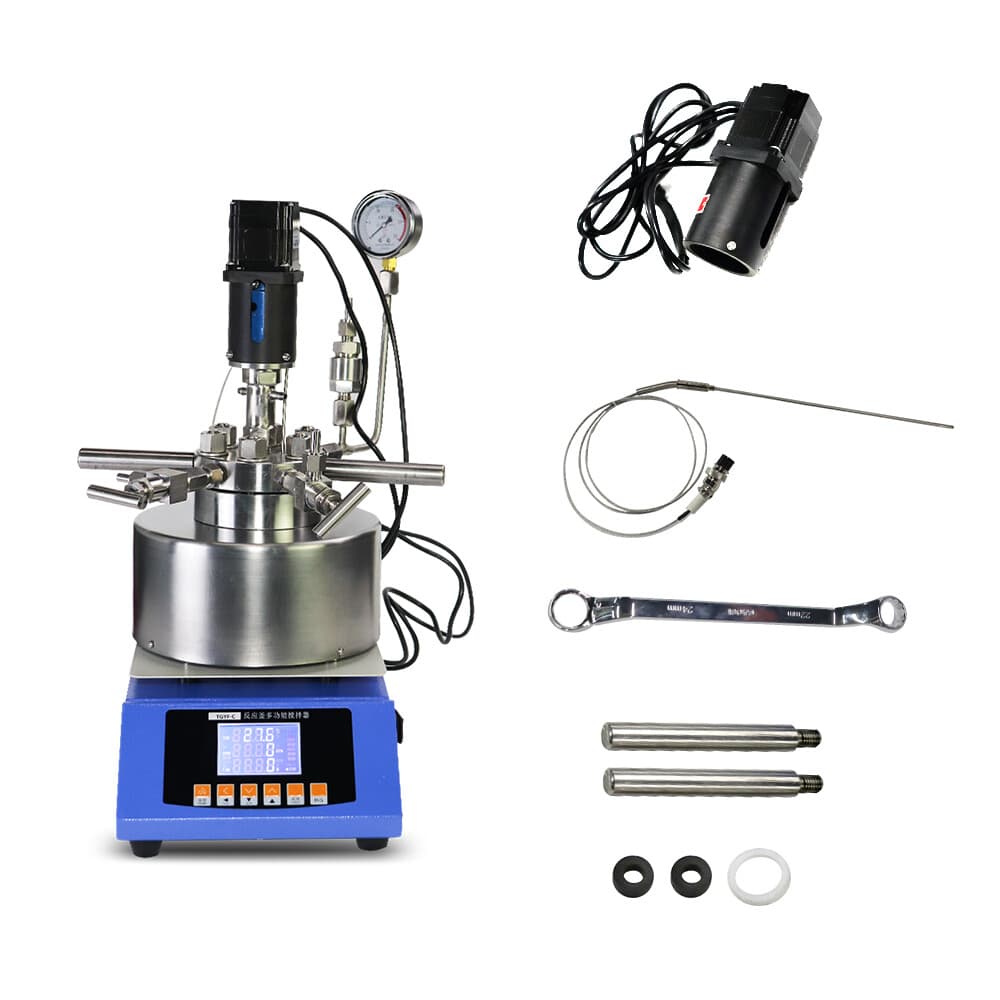

1 / 13This Swiben benchtop autoclave is a 250ml stainless steel high pressure reactor designed for gas-liquid, liquid-liquid, and liquid-solid reactions. The vessel is built from SS304 with a static sealing structure intended to keep stirred contents fully contained and reduce leakage at the stirring interface.
The unit combines stirring, heating, and pressurized reaction in a single desktop format. The static seal makes it suited to flammable, explosive, toxic, or otherwise penetrating chemical media handled in research settings.
It is aimed at university labs, environmental and biochemical research, and small-scale process development where a compact pressurized reactor is needed.
The reactor body and lid seal along a gasket or tapered/arc contact face that is compressed by tightening the main nut to a specified torque range. A magnetic heating mantle provides heating to a design temperature of 350°C, controlled through a PID temperature system, while a magnetically coupled stirrer drives mixing without breaking the seal. After the reaction the vessel is allowed to cool to room temperature before the lid is opened.
Benchtop 250ml SS304 high pressure reactor with magnetic stirring, rated to 350°C and 22MPa, using a static seal to contain volatile and reactive media.
