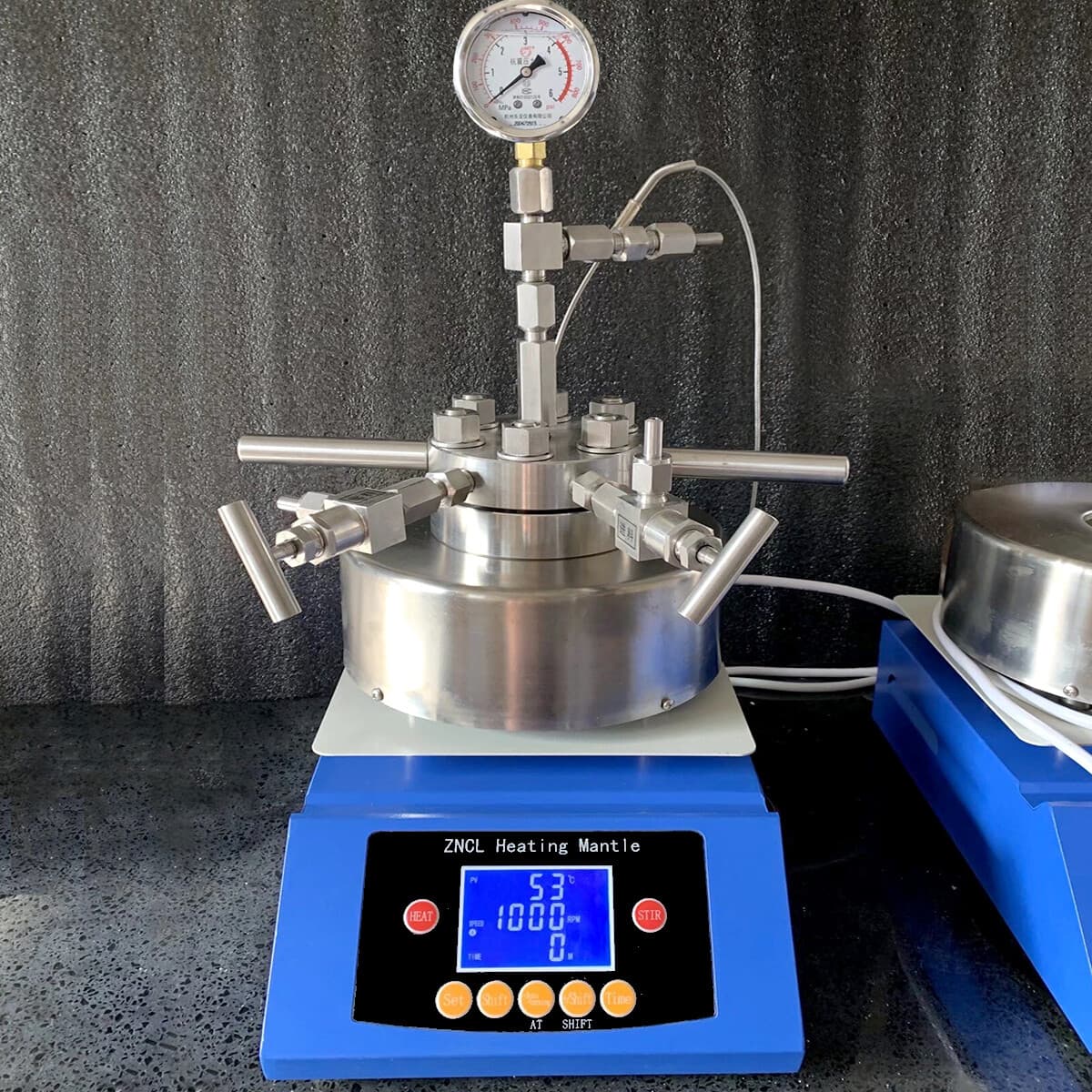

1 / 11The Swiben high pressure reactor set pairs a 250ml and a 500ml SS304 stainless steel vessel (models TGYF-B-250ML and TGYF-B-500ML) for stirred reactions under elevated pressure. Both vessels are rated to a maximum pressure of 22 MPa and a design temperature of 220°C, and each combines stirring, heating, and pressurized reaction in a single unit.
The reactors use a static sealing structure intended to keep the reaction medium and the stirring components sealed, which suits work with flammable, volatile, toxic, or penetrating chemical media. Magnetic heating-mantle heating supplies the thermal load, and stirring runs up to 1800 r/min.
The set is intended for laboratory and research settings such as universities, chemical synthesis, and process development where small-volume pressurized reaction trials are required.
Material is loaded into the SS304 vessel and the lid is sealed by symmetrically tightening the main nut to compress the gasket or tapered sealing surface. The magnetic heating mantle raises temperature under PID control while the magnetically coupled stirrer mixes the contents up to 1800 r/min. Pressure builds within the closed vessel up to its 22 MPa rating; after the reaction the vessel is cooled before the lid is opened.
SS304 high pressure autoclave reactor set with 250ml and 500ml vessels, rated to 22 MPa and 220°C with magnetic stirring and mantle heating.
