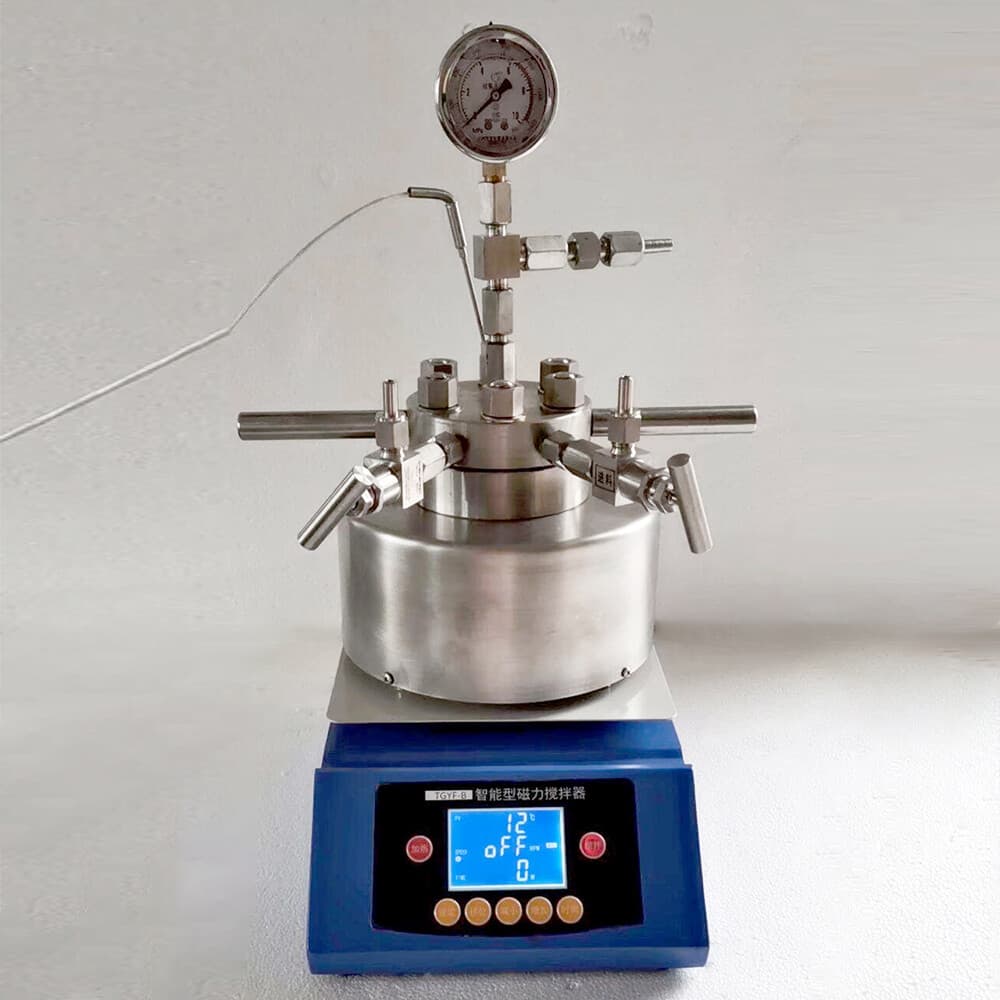

1 / 22The MTST TGYF-B-250ml is a compact high-pressure reactor that combines stirring, heating, and pressurized reaction in a single bench unit. The vessel is built from SS304 stainless steel with a 250ml working volume, a design temperature of 220°C, and a rated pressure range of 0–22MPa.
The unit uses a static sealing structure to keep the reaction medium and stirring components fully enclosed, which suits work with flammable, volatile, toxic, or otherwise reactive chemical media. An LCD shows stirring speed and temperature, and parameters are set through button controls.
This listing covers two TGYF-B-250ml units. It is intended for research and process development in chemistry, organic synthesis, polymer, and related laboratory settings.
Reactants are sealed inside the SS304 vessel, which is closed by tightening the main nut to compress the gasket or tapered sealing surfaces. A magnetic heating mantle raises the temperature under PID control while a DC motor drives magnetic stirring at up to 1800 r/min. The vessel and heater can be separated for faster cooling, and a pressure gauge, intake valve, sampling valve, explosion-proof device, and temperature probe support controlled micro-reaction testing.
Model: TGYF-B-250ml
Bench-scale 250ml SS304 high-pressure autoclave reactor with magnetic stirring, heating mantle, and 22MPa rated pressure. Sold as a set of two.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
