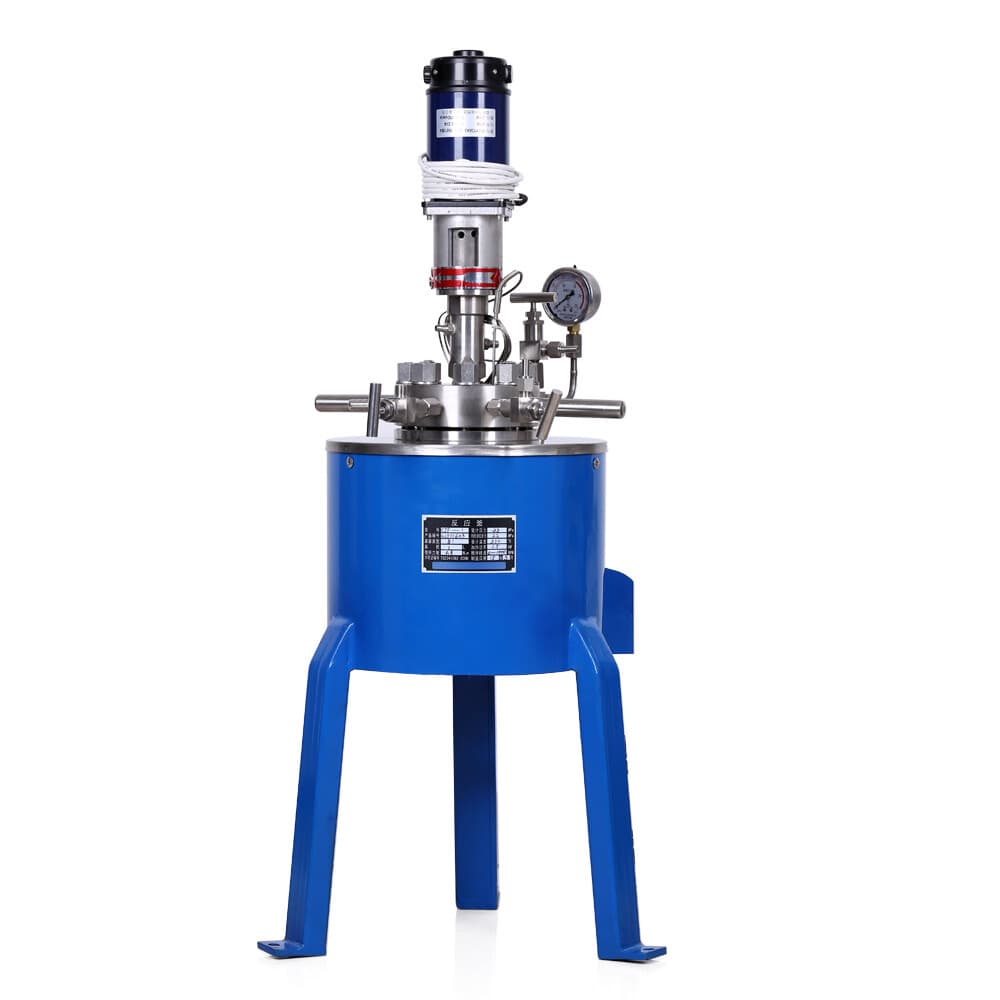

MTST 2L High Pressure Reactor — 350°C / 22 MPa
MTST 2L stainless steel high pressure reactor rated to 350°C and 22 MPa, with motor stirring and inner coil heating for pilot-scale pressurized reactions.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The MTST 2L high pressure reactor is a stainless steel autoclave vessel designed for pressurized synthesis and pilot-scale processing. It is rated for operating temperatures up to 350°C (662°F) and pressures up to 22 MPa (220 bar), making it suitable for reactions that require both elevated heat and pressure.
The unit uses motor-driven stirring with an adjustable speed range of 50 to 1000 rpm and an inner coil heating system for heat transfer to the vessel contents. Temperature is held to within ±1°C, and the reactor operates as a semi-automatic system.
This reactor is intended for labs working on catalysis, materials research, and extraction processes that need a manageable 2L batch size while still supporting pilot-scale work.
How It Works
The sealed stainless steel vessel is brought to the target temperature using an inner coil heating system, while a motor-driven stirrer mixes the contents at a set speed between 50 and 1000 rpm. The closed design allows pressure to build to the rated working limit, and temperature control maintains the setpoint within ±1°C during the reaction.
Key Features
- 2L stainless steel reactor vessel for pilot-scale pressurized reactions
- Rated to 350°C (662°F) operating temperature
- Pressure rating up to 22 MPa (220 bar)
- Motor-driven stirring with adjustable 50-1000 rpm range
- Inner coil heating for heat transfer to vessel contents
- Temperature accuracy within ±1°C
- Semi-automatic operation
Applications
- Pilot-scale chemical synthesis under elevated pressure
- Catalysis research requiring controlled temperature and pressure
