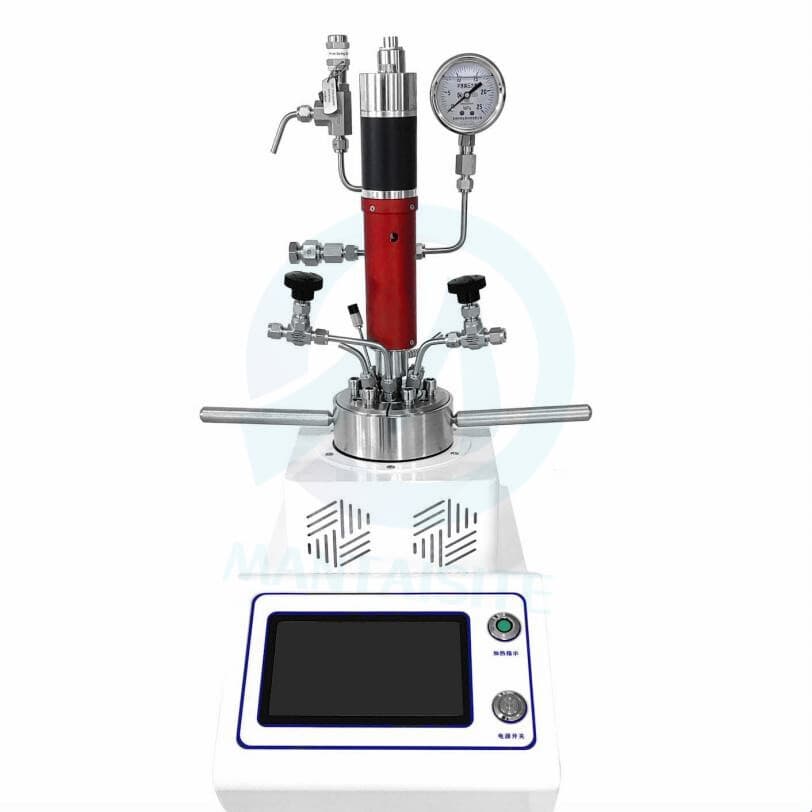

1 / 7The MTST KDJ500-316L is a benchtop high pressure reactor (autoclave) with a 500ml effective volume and an SS316L body. It is built for catalytic, polymerization, supercritical, hydrogenation, and high-temperature/high-pressure synthesis reactions where elevated temperature and pressure must be maintained in a sealed vessel.
The unit uses an overhead magnetic-coupling mechanical stirrer, a quick-open vessel structure for disassembly and cleaning, and a 7-inch touch screen for control. It is rated for operating temperatures up to 600°C and operating pressures up to 10MPa.
It is intended for laboratory and process research settings in petroleum, chemical, pharmaceutical, materials, and metallurgical work.
Reactants are sealed inside the SS316L vessel, which closes with a quick-open caliper and tongue-and-groove sealing surface. A steel jacket heating ring around the vessel provides heating to the set temperature under dual PID control of both vessel and furnace, while the overhead magnetic-coupling mechanical stirrer agitates the contents at 20–1000rpm. Pressure is built and controlled through dedicated inlet and outlet valves, and over-temperature and over-pressure conditions trigger automatic heating stop and pressure relief.
Model: KDJ500-316L
Benchtop SS316L high pressure autoclave reactor with 500ml volume, magnetic-coupled mechanical stirring, and operation to 600°C and 10MPa.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
