Model: 0614162665054

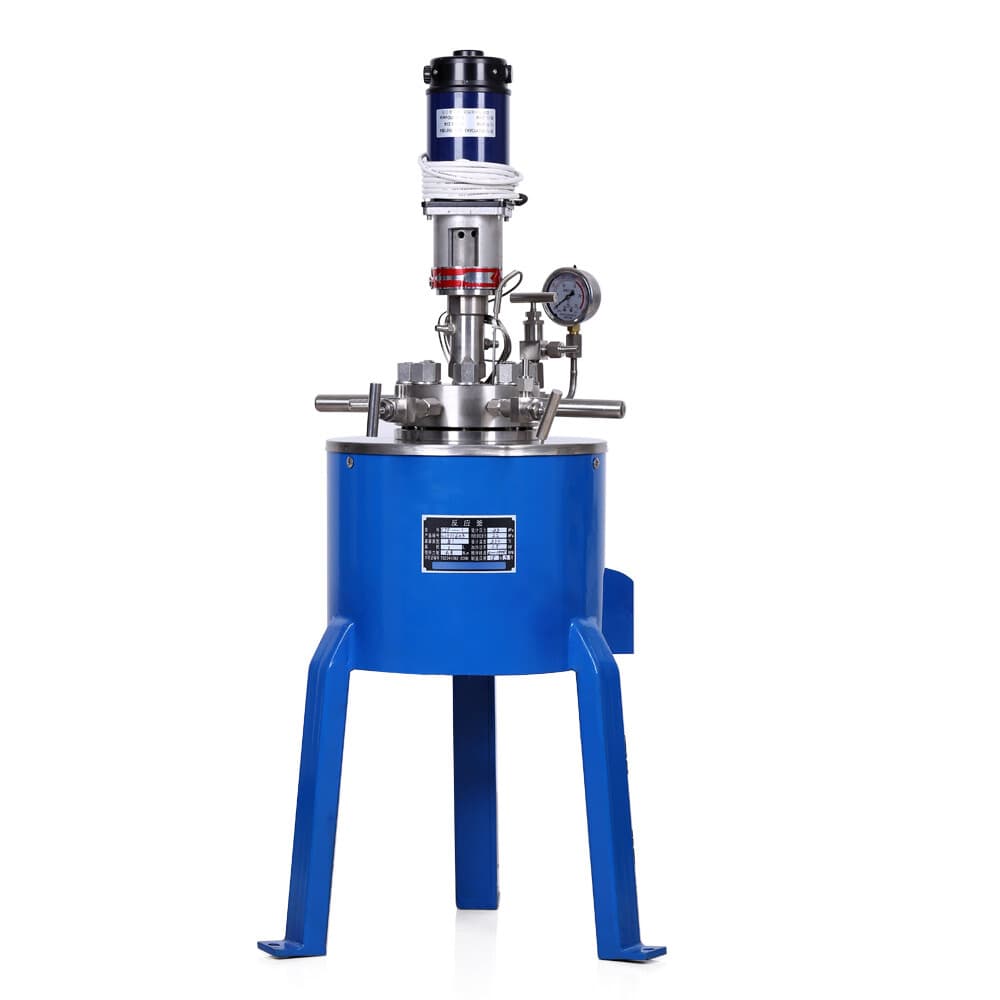

FCF/CJF-series 5L stirred high pressure reactor rated to 5 MPa and 200°C, built from SS316 with a Hastelloy C-22 liner and magnetic stir coupling.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
This is a 5 L laboratory stirred high pressure reactor from the FCF/CJF series, designed for chemical reactions involving gas-liquid, liquid-liquid, liquid-solid, and gas-liquid-solid systems. It operates under pressure, vacuum, and elevated temperature with continuous agitation to support mass and heat transfer.
The vessel is constructed from SS316 with a Hastelloy C-22 liner and a PPL lining, and it carries a working temperature rating of 200°C and a setting pressure of 5 MPa. A magnetic coupler links the motor to the agitator, replacing a dynamic shaft seal with a static seal to address leakage during stirring.
The design suits laboratories running reactions with flammable, toxic, or otherwise demanding media in fields such as organic synthesis, polymerization, and petrochemical research.
The motor drives the agitator through a magnetic coupler rather than a sealed shaft, transferring torque without direct contact so the stirred contents remain in a sealed environment. An intelligent controller monitors and regulates motor speed, temperature, and pressure, while a silicone oxide ceramic heating element provides heat. A bolted, liftable cover allows for top or bottom discharge, and an explosion-proof valve is fitted for pressure relief.
