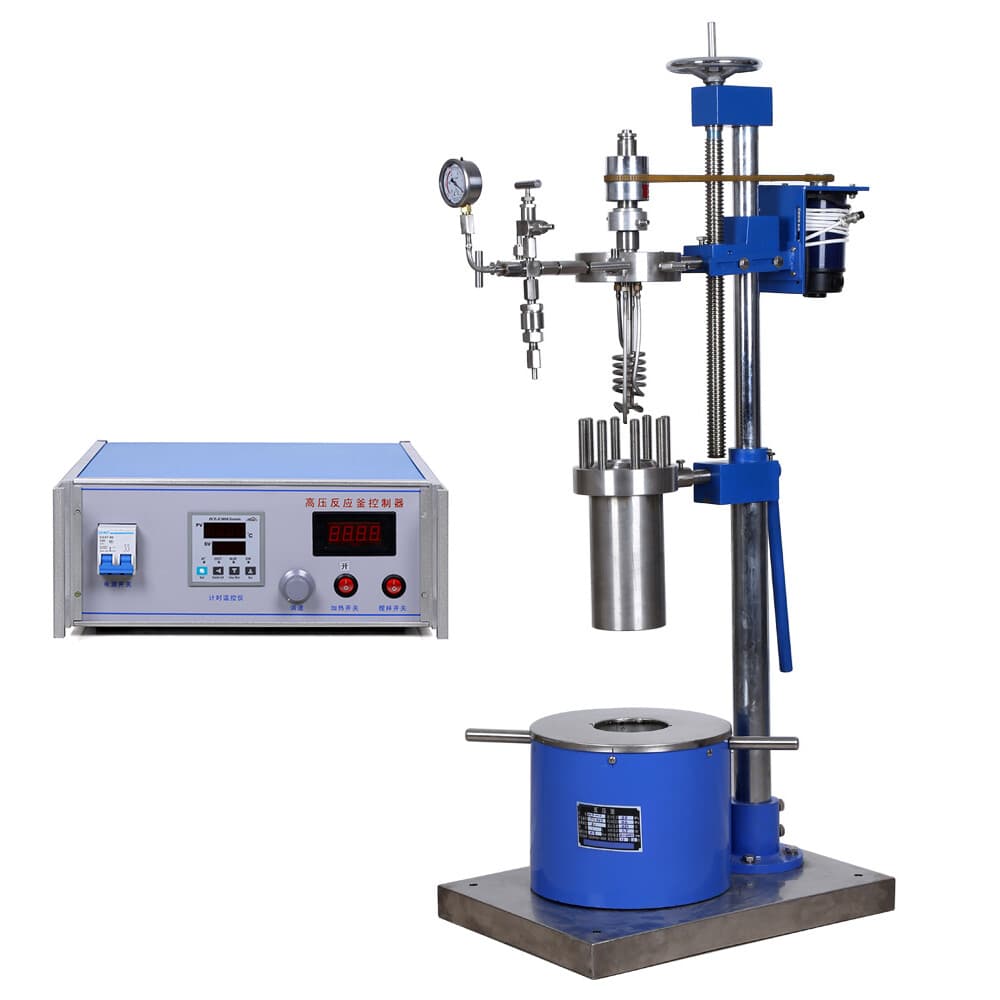

1 / 11The MTST FCF-2 is a 2-liter high pressure stirred autoclave reactor built in SS-304/304L stainless steel. It is rated for pressures up to 22 MPa and temperatures up to 350°C, with temperature control to ±1°C.
The vessel includes a motor-driven stirrer adjustable from 50 to 1000 r/min and 2000 W of heating power. It is designed for sealed reactions involving flammable, explosive, toxic, or otherwise demanding media.
The FCF-2 suits laboratories performing pressurized organic synthesis, hydrothermal work, and process chemistry where a leak-resistant stirred vessel is required.
How It Works
Reagents are sealed inside the stainless steel vessel, which is heated electrically up to 350°C while internal pressure can build to 22 MPa. A motor-driven stirrer mixes the contents at a selectable speed between 50 and 1000 r/min, and temperature is regulated to within ±1°C to maintain reaction conditions.
Key Features
- 2 L vessel capacity in SS-304/304L stainless steel
- Maximum working pressure of 22 MPa
- Temperature setting up to 350°C with ±1°C control accuracy
- Motor-driven stirrer adjustable from 50 to 1000 r/min
- 2000 W heating power
- Sealed design intended for flammable, explosive, toxic, or penetrating media
Applications
- Pressurized organic synthesis reactions
- Hydrothermal synthesis in a sealed vessel
- Polymer and chemical process development
- Oxidation, fluorination, and vulcanization process work
