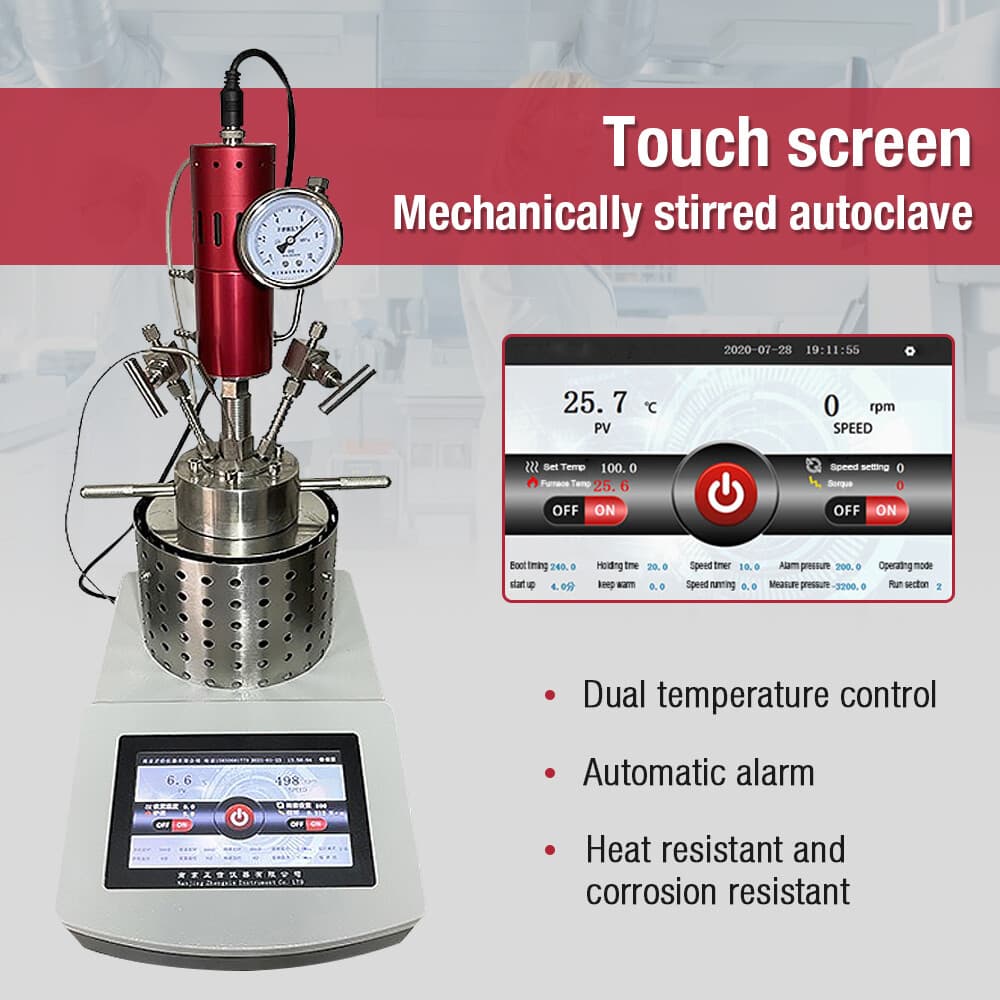

The MTST KD-HP-T is a stirred high pressure autoclave reactor built for chemical synthesis and mixing reactions that require sealed, pressurized conditions. It offers a working volume range of 50-5000ml and is configured through a touch-screen interface.

The reactor is rated for temperatures up to 600°C and pressures up to 60 MPa. Body materials can be specified as 304 or 316L stainless steel, Hastelloy, or titanium, and inner linings are available in PTFE (Teflon), quartz, PPL, or steel, allowing the unit to be matched to corrosive or sensitive media.

This is a configurable, non-standard system. Volume, temperature, pressure, material, lining, and voltage can be specified to suit a given process, and the kettle can be fitted with inlet and outlet valves, liquid extraction valves, temperature ports, and a pressure gauge.

How It Works

A shaft-driven paddle agitator mixes the contents of the sealed vessel at speeds from 0 to 1000 rpm, with torque rated to 40 kg·m for viscous materials. A fully enclosed stainless steel module heater delivers 600-5500 W and holds temperature to within ±1°C using dual-channel control. A Hastelloy explosion-proof device provides automatic pressure relief, and over-temperature and over-time conditions trigger an alarm.

Key Features

• Working volume range of 50-5000ml, configurable to the process
• Rated to 600°C and 60 MPa with ±1°C temperature accuracy
• Body materials include 304, 316L, Hastelloy, and titanium
• Selectable inner lining: PTFE, quartz, PPL, or steel
• Shaft-driven paddle stirring, 0-1000 rpm, 40 kg·m torque, 100 W motor
• Module heating element rated 600-5500 W, separable from the kettle body
• Hastelloy explosion-proof pressure-relief device with over-temperature and over-time alarms
