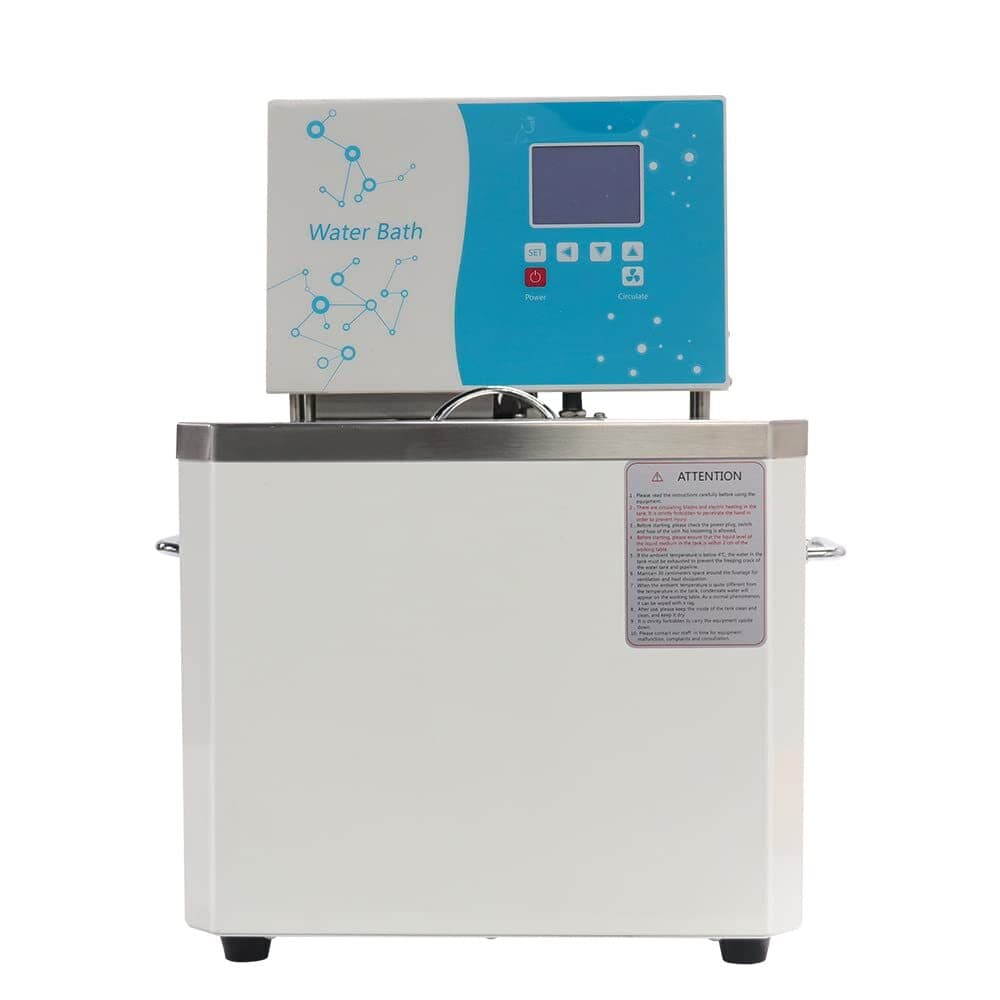

Model: GX-2005 (5L)
ZZKD GX-2005 heated circulating bath with a 5L tank, RT~300°C range, and ±0.1°C control for jacketed reactors and high-temperature processes.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The ZZKD GX-2005 is a high-temperature circulating bath designed to supply heated fluid to external lab equipment such as jacketed reactors and distillation setups. It operates over a range from room temperature up to 300°C and uses oil or water as the working fluid.
The tabletop and inner liner are constructed from 1.2mm 304 stainless steel for corrosion resistance and easier cleaning. An external circulation port lets the constant-temperature liquid be routed to connected equipment, establishing a second thermostatic field outside the tank.
This unit is intended for chemistry and process labs that need stable, uniform heating for reactions, distillation, and related high-temperature work.
A SUS304 stainless steel heating element warms the bath fluid while a PT100 sensor feeds an intelligent PID controller that holds the setpoint to within ±0.1°C. A copper-core motor drives the circulation pump, moving heated fluid from the tank outlet to the inlet of connected external equipment such as a reactor jacket, then returning it for continuous temperature regulation.
