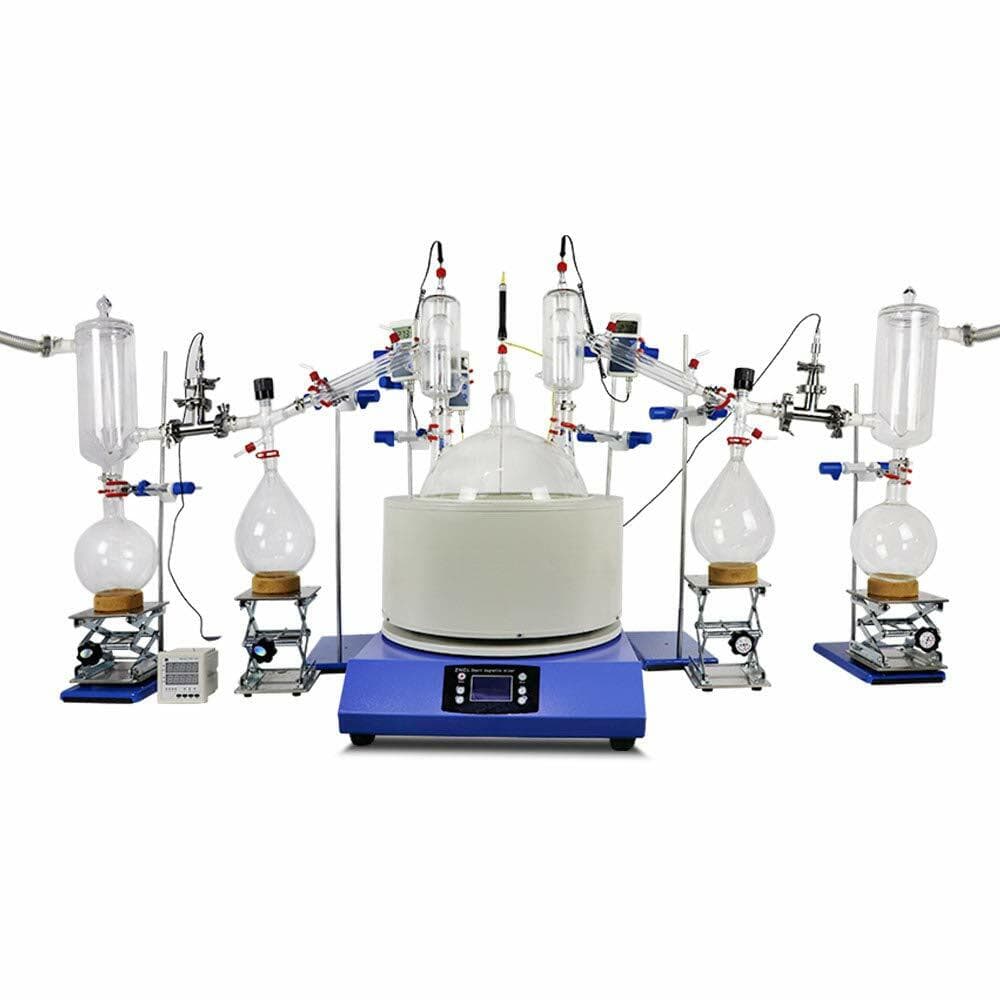

Model: SPDS-10L/SPDS-20L
MTST short-path distillation system in 10L and 20L configurations, with stirring, vacuum operation to 0.098 MPa, and heating up to 350°C.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The MTST SPDS series is a short-path distillation system offered in 10L and 20L configurations to match different production volumes. It is intended for operators who run distillation as a core processing step and need a system that can be matched to existing infrastructure.
The unit operates on a 110V/60Hz supply and includes stirring (0.08 kW) along with heating rated at 1500W/3000W and a maximum heating temperature of 350°C. It is designed to run under vacuum, reaching 0.098 MPa.
The system requires separate heating, vacuum, and chilling support to operate, so it is best suited to labs that already have or plan to add those services.
Short-path distillation separates compounds by heating the feed under reduced pressure so that vapor travels a short distance to a condenser before recondensing. Operating under vacuum (to 0.098 MPa) lowers boiling points, while the heating system reaches up to 350°C and stirring helps maintain consistent conditions in the feed.
