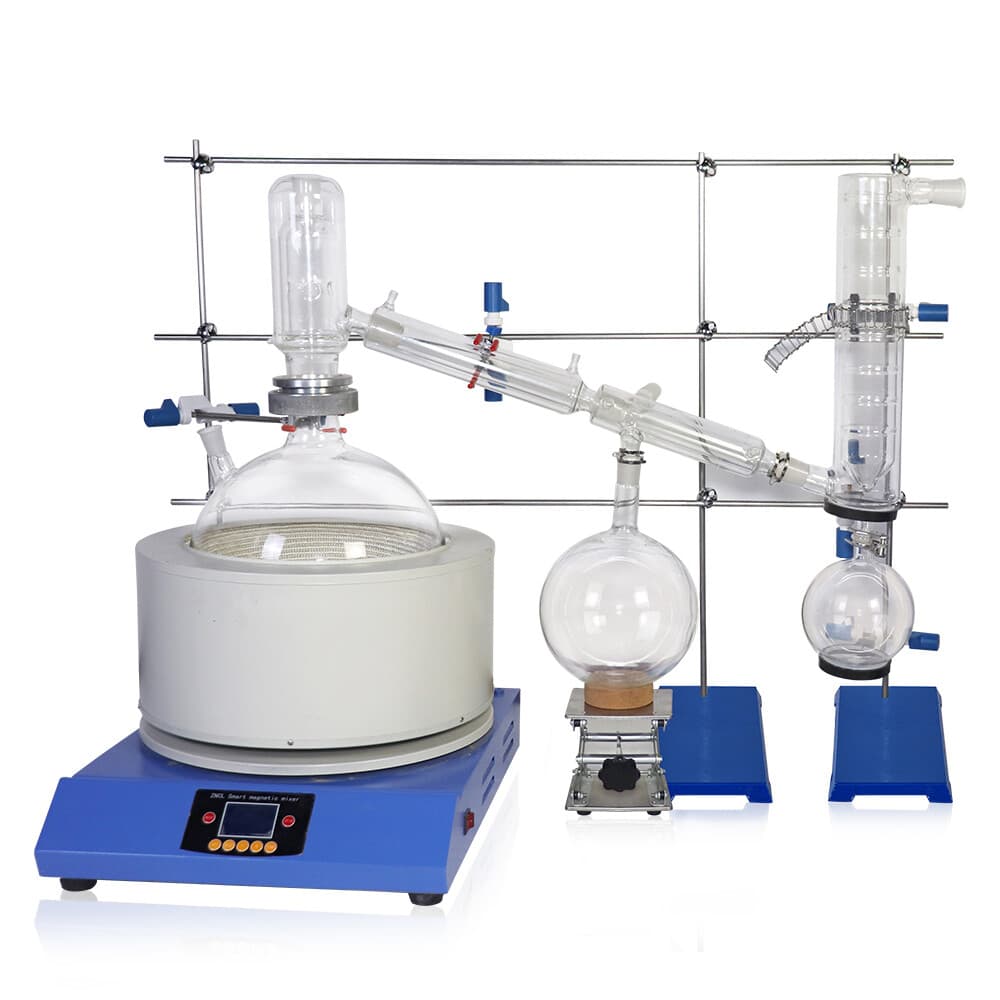

1 / 13The MTST SPD-20L-E is a complete short path distillation kit built around a 20L boiling flask and a matched set of high borosilicate glass components. It includes a distillation head, condenser, isolation adapter, 5000ml receiving flask, and a cold trap with a 2L flask, along with clamps and a digital thermometer.
Short path distillation moves vapor a short distance from the boiling flask to the condenser under reduced pressure, which allows separation at lower temperatures than atmospheric boiling points. This kit is intended for laboratory operators performing fractional separation and purification of liquid mixtures.
The system is powered by a ZNCL-T-20L magnetic stirring heating mantle rated at 1800W with a maximum temperature of 380 °C and operates on a 110V/60Hz supply, with a 220V option.
A liquid mixture in the 20L boiling flask is heated by the magnetic stirring mantle while the system is held under vacuum (0.098 MPa). Components evaporate based on differences in volatility, travel a short path through the distillation head, and condense for collection in the receiving flask. The cold trap protects the vacuum line by capturing residual vapors. Operating under reduced pressure lowers the required heating temperature, which is useful for heat-sensitive compounds.
Model: SPD-20L-E
20L short path distillation kit in high borosilicate glass with a 1800W magnetic stirring heating mantle, cold trap, and digital thermometer.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
