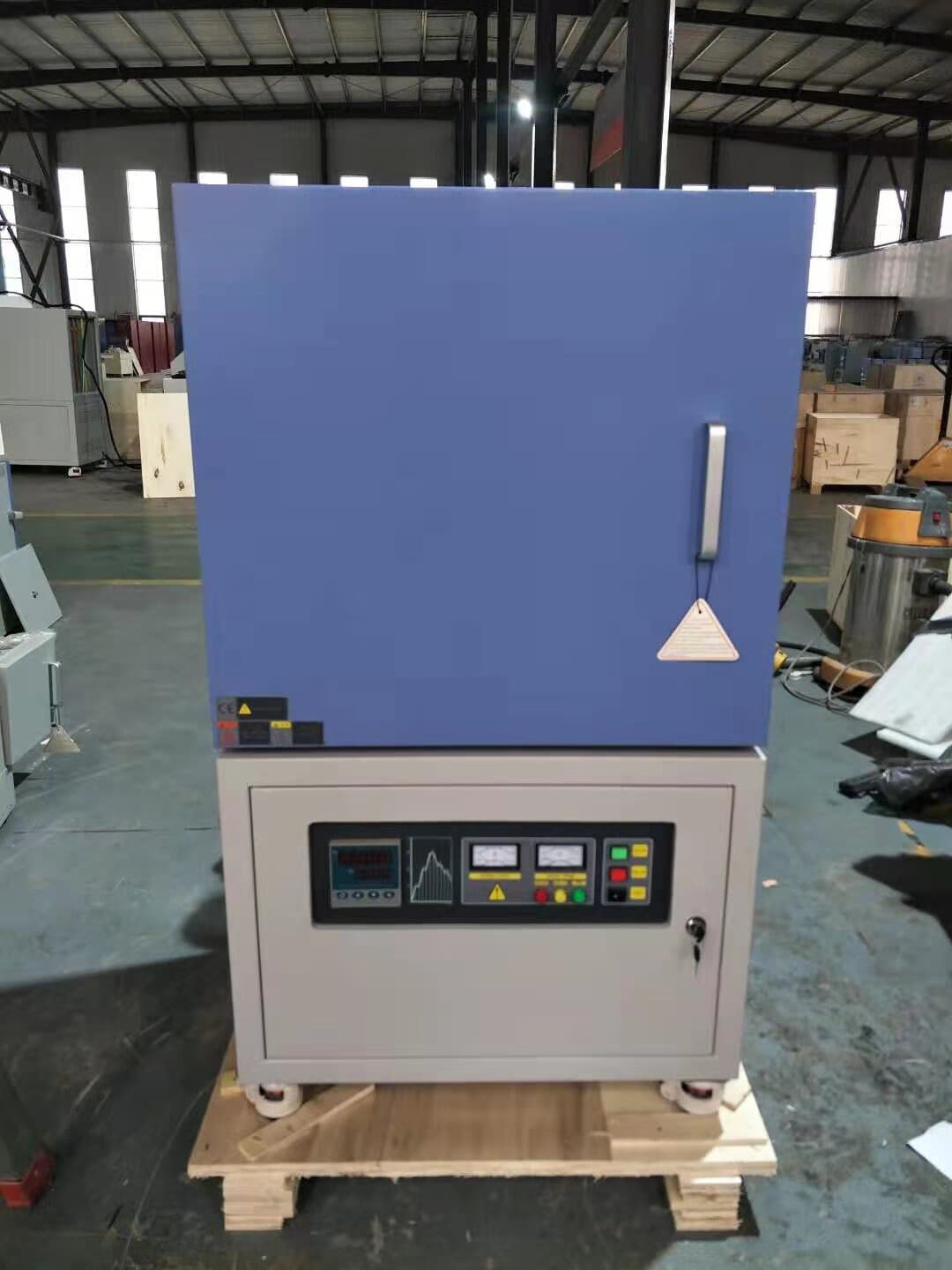

MTST muffle furnace with a 300×300×300mm chamber, MoSi2 heating elements, and a 1700°C maximum temperature for high-temperature laboratory thermal processing.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The MTST muffle furnace is a high-temperature laboratory unit built for heat treatment, drying, and general thermal processing. It uses a 300×300×300mm (27 L) insulated chamber heated by MoSi2 elements, with a rated operating temperature of 1600°C and a maximum of 1700°C.
Rated at 10 kW and configured for 220V 60Hz (208V optional), the furnace holds temperature accuracy of ±1°C and supports controlled heating rates up to 15°C/min, with 10°C/min recommended for routine use.
It is intended for laboratories that require repeatable high-temperature cycles, including thermal processing and drying of materials placed within the chamber.
MoSi2 heating elements radiate heat into an insulated chamber, while the temperature controller regulates the heating rate and holds the setpoint to within ±1°C. Operators set a target temperature and ramp rate, and the controller maintains uniform conditions inside the enclosed muffle.
