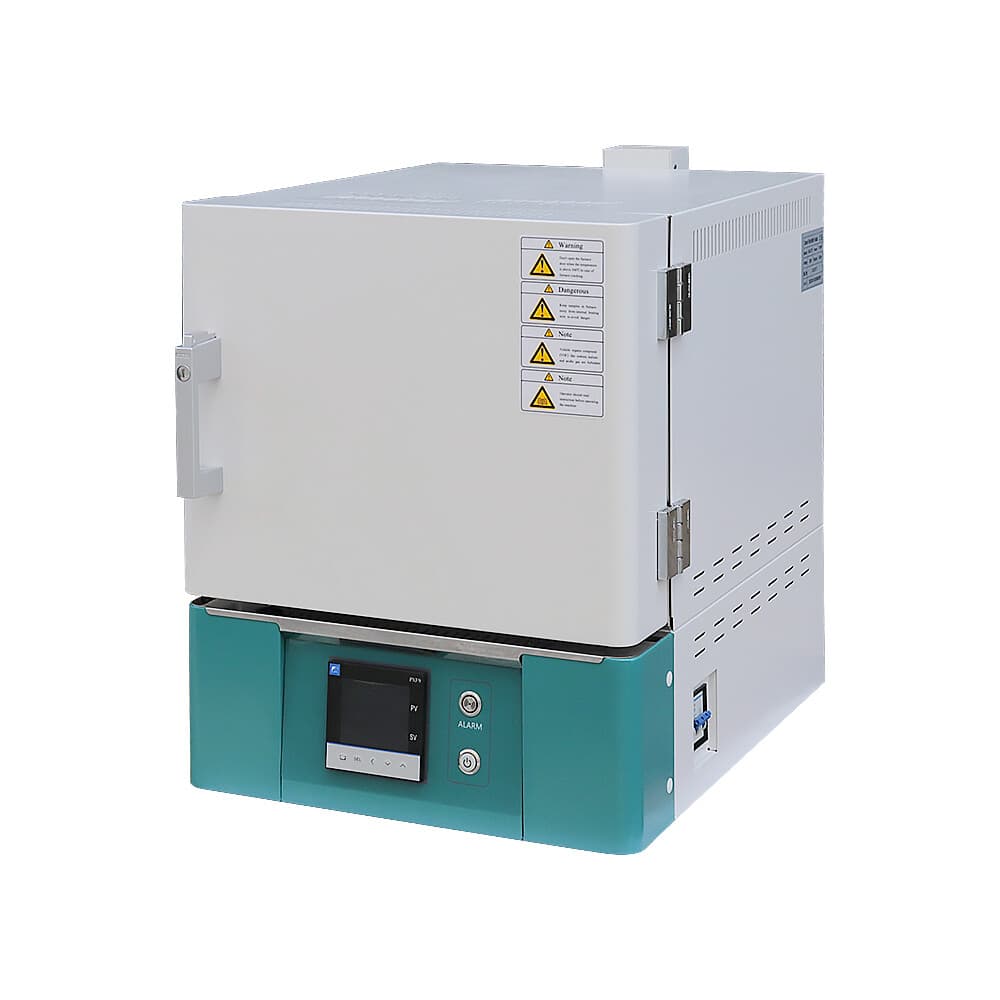

Model: SX4-2-12P
Swiben SX4-2-12P muffle furnace with a 100–1200°C range, ceramic fiber chamber, and 1.5 kW heating for high-temperature sample work.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The Swiben SX4-2-12P is a muffle furnace built for high-temperature processing across a 100–1200°C range. It uses an alloy heating wire and a ceramic fiber chamber lining, with a rated power of 1.5 kW.
The inner chamber measures 120 × 200 × 80 mm, giving a compact working volume of roughly 2 liters. Temperature is set in 1°C steps with stability held to about ±1°C, and the unit reaches maximum temperature in 30 minutes or less.
This furnace suits laboratories performing ashing, sintering, heat treatment, and high-temperature sample preparation that call for controlled, repeatable heating.
An alloy heating wire heats the ceramic fiber chamber, while a controller regulates the setpoint in 1°C increments and holds temperature to approximately ±1°C. A 30 mm exhaust hole with an 80 × 60 mm chimney vents the chamber during operation.
