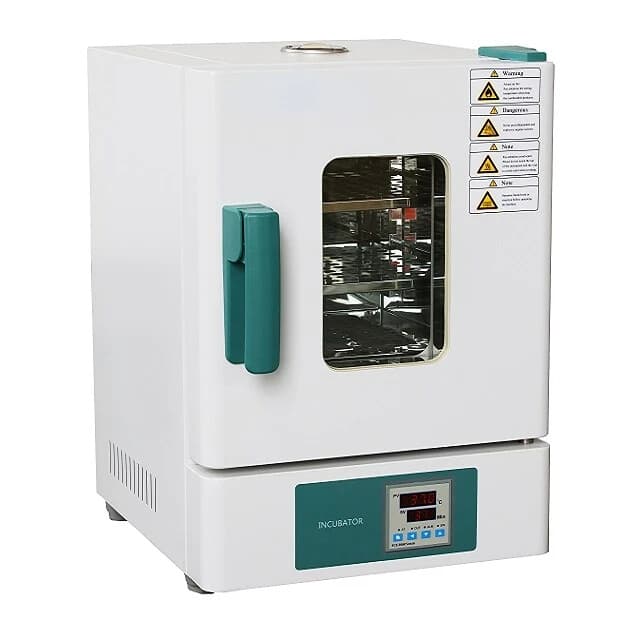

1 / 6The Swiben WHL-25AB is a benchtop laboratory drying oven with an 18L (260 × 260 × 260 mm) interior. It uses natural convection, circulating heated air through the chamber for constant-temperature drying and heating tasks.
The "B" configuration uses a mirror stainless-steel inner chamber, while the outer shell is electrostatically sprayed cold-rolled steel with rock wool insulation. A double-glass observation window, adjustable buckle lock, and silicone door seal help limit heat loss during operation.
It is intended for processing and extraction labs that need a compact unit for sample drying, conditioning, and routine thermal work. Two shelves are included, and shelf spacing is adjustable.
A nickel-chromium alloy heating element warms the chamber, and air moves by natural convection to distribute heat. A PT100 sensor feeds a two-section intelligent PID controller, which displays measured and set temperatures on separate digital readouts and supports timed operation up to 9999 minutes with automatic stop.
Model: WHL-25AB (RT+5~300℃)
Benchtop natural-convection drying oven with an 18L stainless-steel chamber, PID control, and a temperature range to 300°C.
