Model: 0606267299159

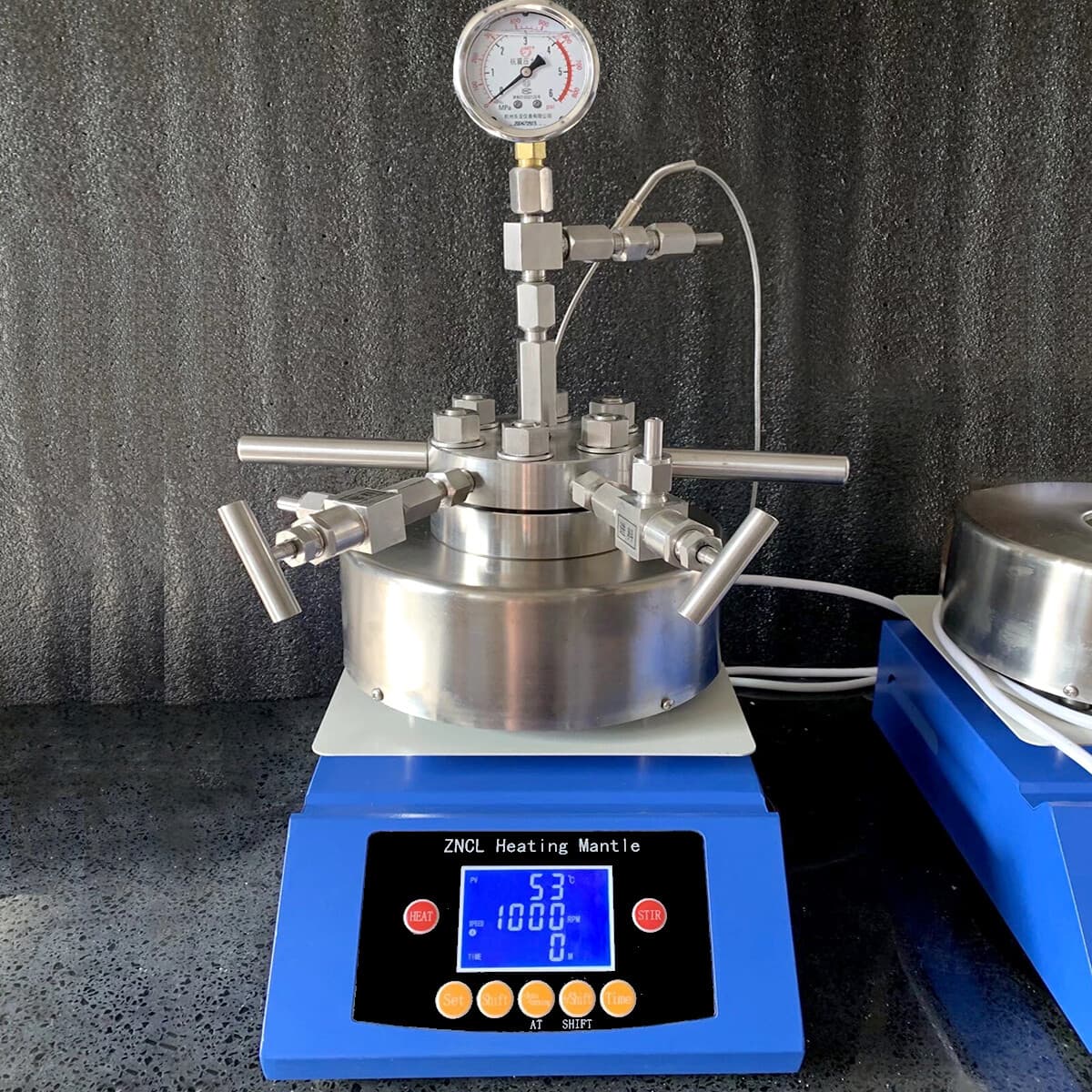

Stainless steel high pressure reactor set with two 250 mL and one 500 mL TGYF-B vessels, rated to 22 MPa and 220°C with integrated stirring and PID heating.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
This kit combines three sealed stainless steel (SS304) high pressure reactor autoclaves: two TGYF-B-250mL vessels and one TGYF-B-500mL vessel. Each unit integrates mechanical stirring, heating, and pressurized reaction in a single compact assembly rated to a safe working pressure of 22 MPa and a recommended maximum temperature of 220°C.
The reactors use a static sealing design intended to keep the reaction medium and the stirring components fully enclosed, which suits work with flammable, explosive, toxic, or penetrating chemical media. Applications include organic synthesis, polymer chemistry, and general process reactions such as oxidation and fluorination.
The set is aimed at universities, research institutions, and laboratories in chemistry, biochemistry, and environmental fields that need small-volume, high-pressure reaction capability across multiple vessel sizes.
Reactants are loaded into the stainless steel kettle, which is then sealed by tightening the main nut against a gasket or line-contact tapered seal to a torque within the 40–120 Nm range. An external heater raises the vessel temperature under PID control at a recommended rate of up to 5°C/min, while a DC motor drives the internal stirrer. Pressure and temperature are monitored via a pressure gauge and temperature probe, and the vessel is allowed to cool naturally to room temperature before the lid is opened.
