Model: FCF-1(1L)
ZZKD FCF-1 flange-type high pressure reactor with stainless steel construction, magnetic stirring, and pressure rating up to 22 MPa for pressurized synthesis.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.

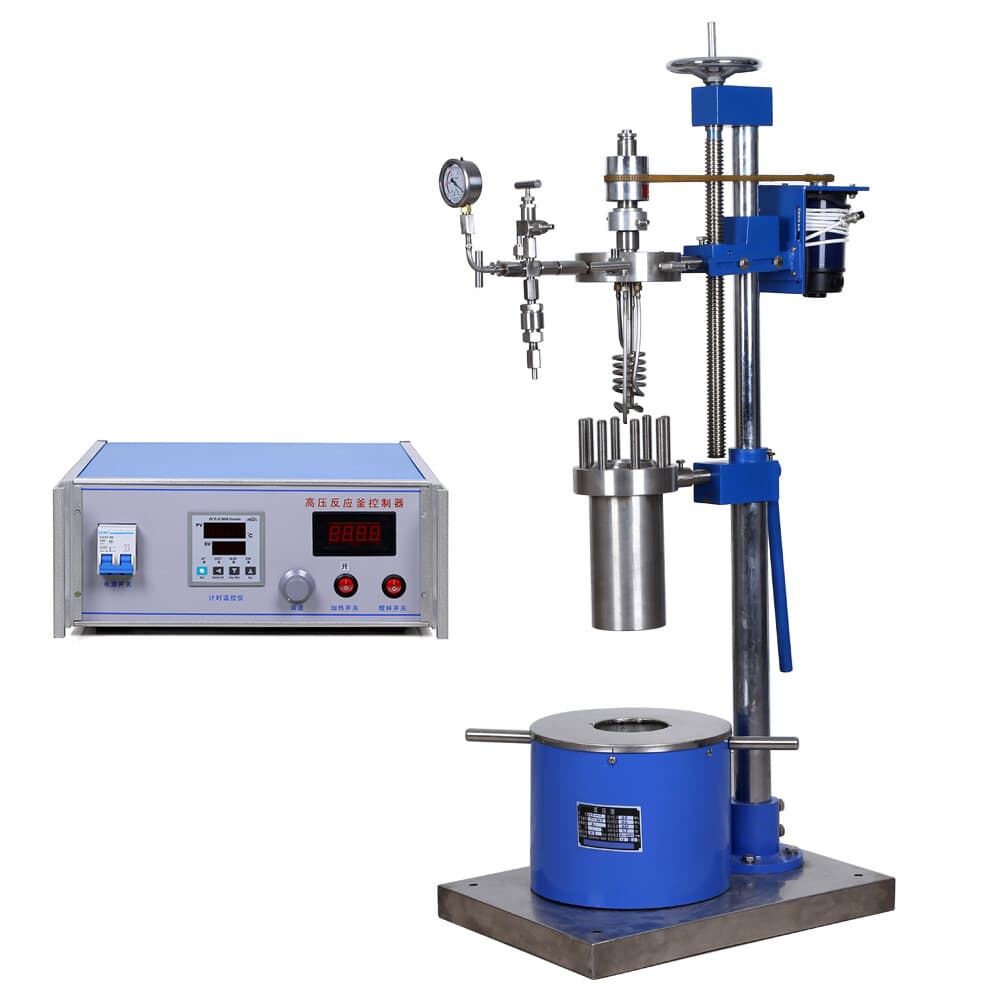

The ZZKD FCF-1 is a flange-type high pressure reactor configured at 1 L, with the FCF series spanning 1 L to 5 L capacities. It uses a bolted flange closure to form a secure seal for pressurized operation while allowing access for loading and cleaning.
Built from stainless steel with magnetic stirring, the unit is suited to hydrothermal synthesis, hydrogenation, and other pressurized chemical reactions. It supports bench-to-pilot scale work in laboratory and process development settings.
The reactor handles set temperatures up to 350 °C with ±1 °C accuracy and a maximum working pressure of 22 MPa, making it intended for users running controlled high-pressure reactions.
The reaction vessel is sealed with a bolted flange closure to contain pressure during operation. A magnetically coupled stirrer drives the internal agitator without a shaft seal, while integrated heating raises the contents to the set temperature for pressurized synthesis and reaction work.
