Model: 0614162665061

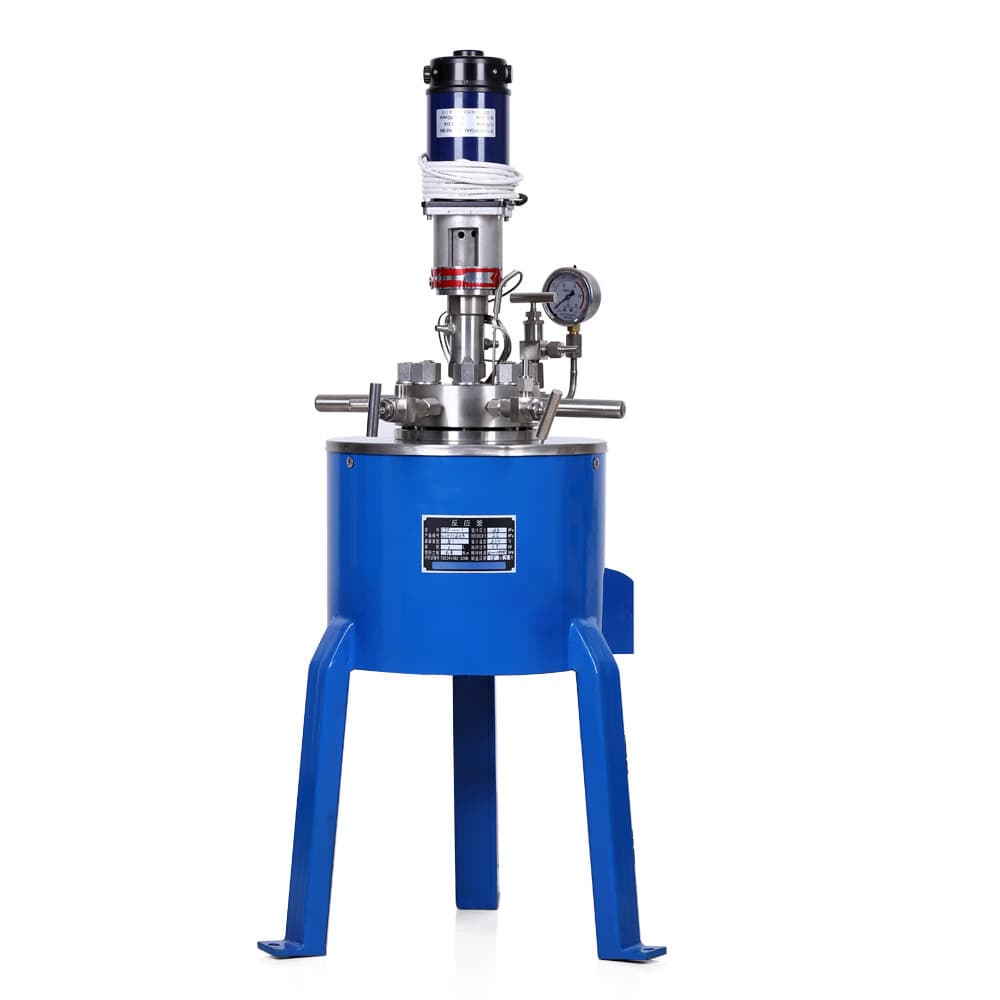

CJF-series 2L stainless steel high pressure stirred reactor with PTFE lining, magnetic-coupled stirring, and rating to 350°C and 22 MPa.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The MTST CJF-series is a 2L lift-type high pressure stirred reactor built for gas-liquid, liquid-liquid, liquid-solid, and three-phase reactions. The vessel is constructed from stainless steel and supplied with a PTFE reactor lining, making it suitable for handling corrosive and reactive chemical media.
Stirring is driven through a magnetic coupling between the motor and the agitator, using a static sealing structure to address leakage common with dynamic seals. This makes the unit appropriate for flammable, explosive, toxic, or volatile media used in petrochemical work, organic synthesis, polymer polymerization, and food processing applications.
The reactor ships with an intelligent temperature controller and the PTFE lining, and is rated to a maximum temperature of 350°C and pressure of 22 MPa (220 bar). It is intended for laboratory-scale process and reaction work.
The motor drives the internal agitator through a magnetic coupling, transmitting torque across a sealed barrier so the vessel remains statically sealed rather than relying on a rotating dynamic seal. Heat is applied via an outer coil heating arrangement, while the controller monitors and regulates motor speed, temperature, and pressure. The bolted, liftable cover allows top or bottom discharge.
