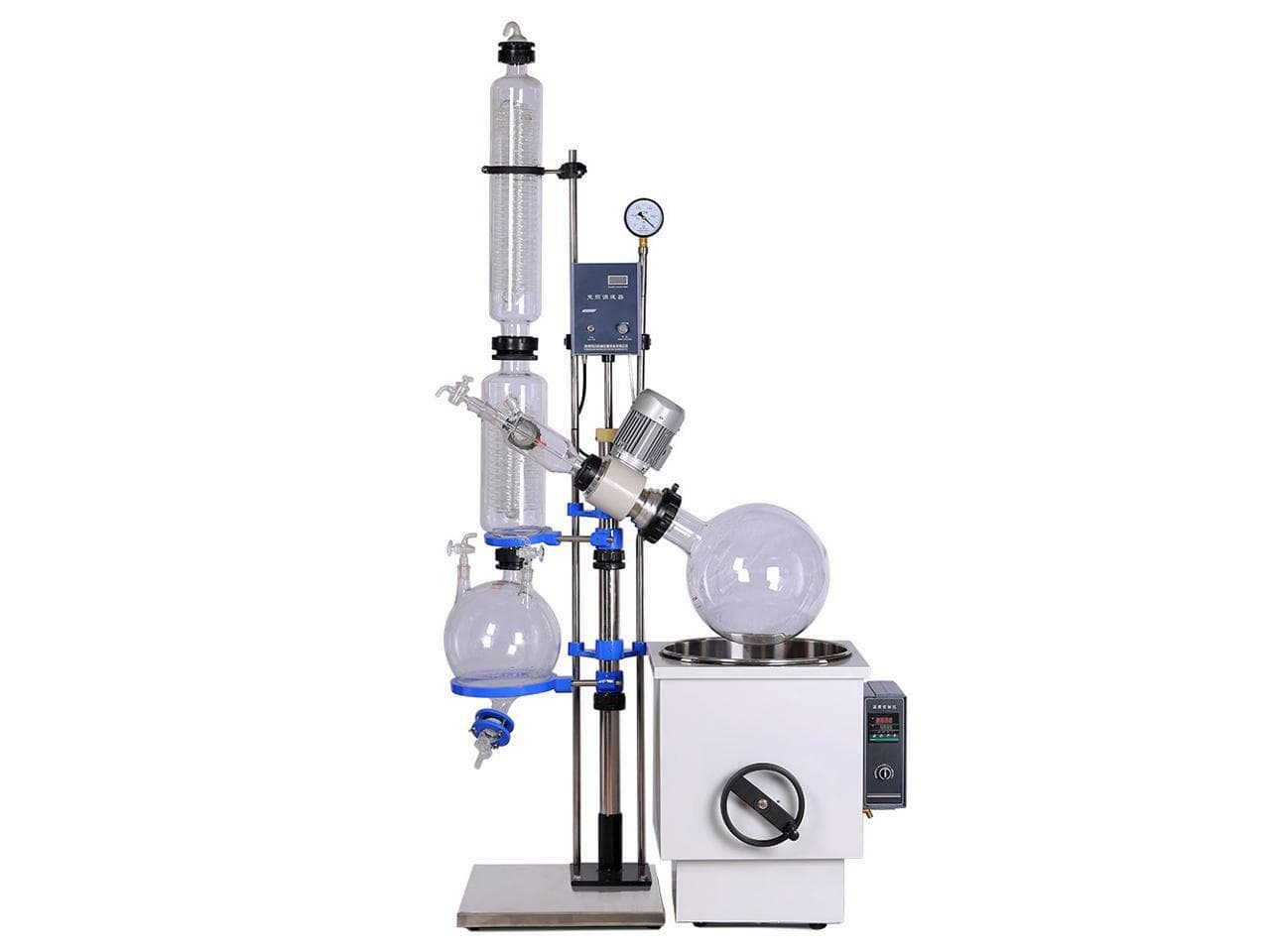

1 / 13The MTST RE-1002 is a 10L rotary evaporator built for concentration, separation, and solvent recovery in laboratory and pilot-scale settings. It pairs a 10L evaporating flask with a 5L receiving flask and a vertical double condenser providing 0.57 m² of cooling surface.
The unit uses a heated water bath to evaporate solvent under reduced pressure, with digital control over rotation speed and bath temperature. A motorized lift (or electric hoist) raises and lowers the bath, and a PTFE sealing system maintains vacuum integrity.
It suits chemical, pharmaceutical, academic, and research labs that need reliable evaporation of heat-sensitive materials.
The sample flask rotates inside a heated water bath while the system is held under vacuum. The thin film formed by rotation, combined with reduced pressure, lowers the solvent's boiling point so it evaporates at moderate temperatures. Vapor travels to the vertical double condenser, where it is cooled and collected in the receiving flask.
Model: RE-1002
10L rotary evaporator with motorized water bath lift, digital speed and temperature control, and a vertical double condenser. Runs on 110V.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
