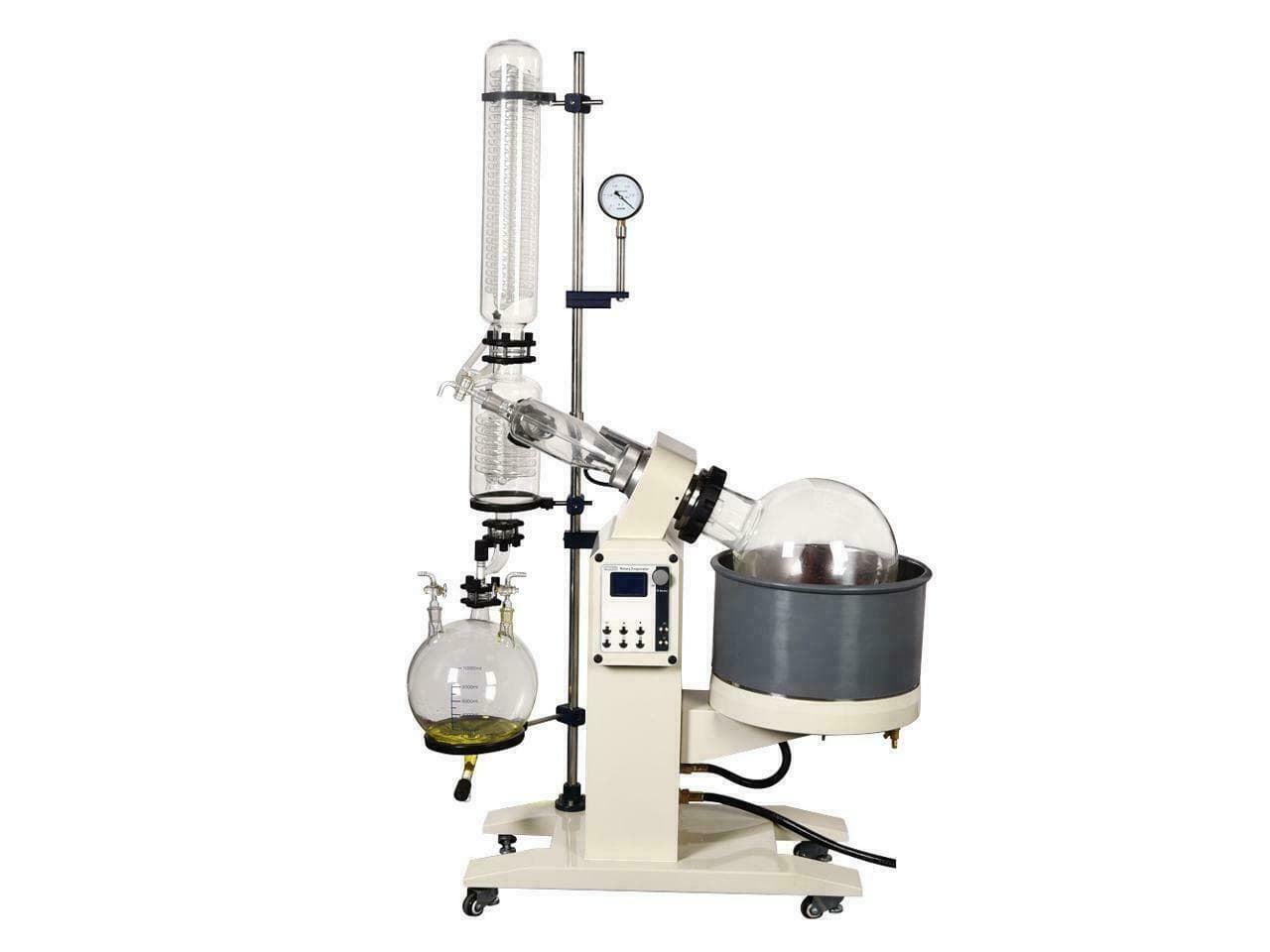

1 / 14The MTST RE-501 is a 5L rotary evaporator built for solvent recovery, concentration, crystallization, and separation of heat-sensitive materials. It pairs a 5L evaporating flask with a 3L receiving flask and uses high-borosilicate glassware throughout.
A 40 W stepless-regulation motor drives rotation from 0 to 120 rpm, while a 1.5 kW heating bath supports a controlled temperature range of 0–99 °C (up to 250 °C reported). Manual lifting raises and lowers the flask assembly over a 0–150 mm range.
The unit is suited to chemical, pharmaceutical, and academic or research labs that need reliable concentration and solvent recovery, including some reflux extraction applications. It runs on a 110V US supply.
The evaporating flask rotates under heat in the bath while the system is held under reduced pressure. Rotation spreads the sample into a thin film for efficient evaporation; the vapor then passes to a condenser where the solvent is condensed and collected in the receiving flask.
Model: RE-501
5L rotary evaporator with manual lift, 0-120 rpm rotation, 1.5 kW heating bath, and borosilicate glassware for solvent recovery and concentration.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
