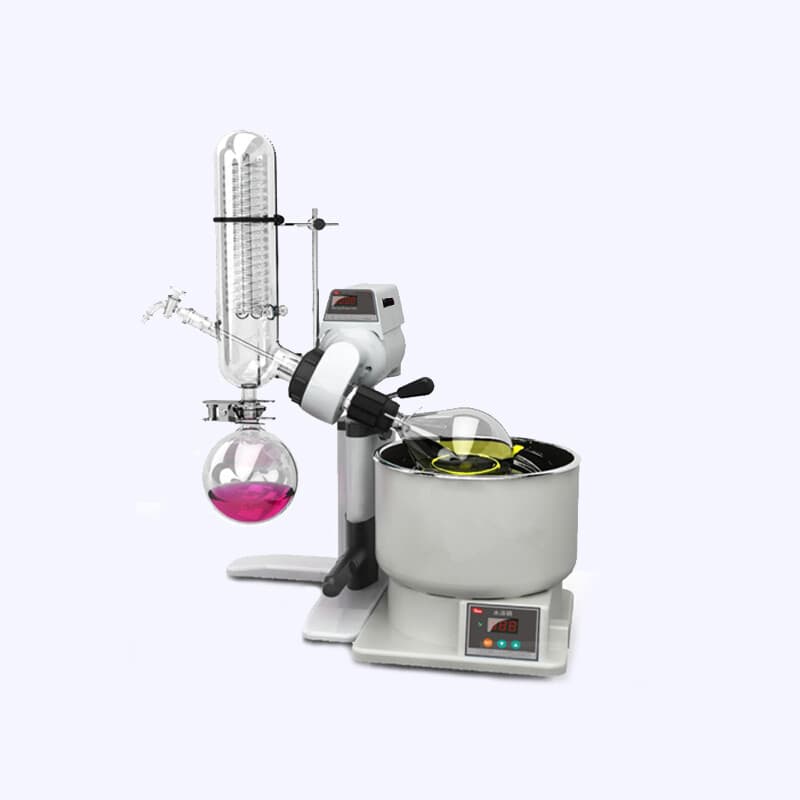

1 / 15The ZZKD N-1100-D is a laboratory rotary evaporator designed for the controlled removal of solvents from samples by evaporation under reduced pressure. It accepts a 1–2L rotary (evaporating) bottle and pairs with a 1L collecting bottle, making it suited to small-batch distillation and concentration work.
The unit integrates a heated water bath (φ260×140 mm, 7.4L), a water-cooled condenser, and a motorized lifting mechanism for raising and lowering the flask assembly. Rotary speed is adjustable from 10 to 180 rpm, and the heater bath operates from room temperature up to 100°C.
It is intended for chemistry and extraction labs that need a compact distillation setup and can be combined with a vacuum pump and recirculating chiller for a complete solvent-recovery configuration.
The sample flask rotates within a heated water bath while the system is held under vacuum, lowering the solvent's boiling point so it evaporates gently. Vapor travels to the water-cooled condenser, where it returns to liquid and collects in the receiving flask. PID-based temperature control regulates the bath, and the worm-and-gear motor drive maintains steady rotation.
Model: N-1100-D
ZZKD N-1100-D rotary evaporator with a 1–2L evaporating flask, 7.4L water bath, and PID temperature control for gentle solvent removal under vacuum.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
