Model: 0606267297728

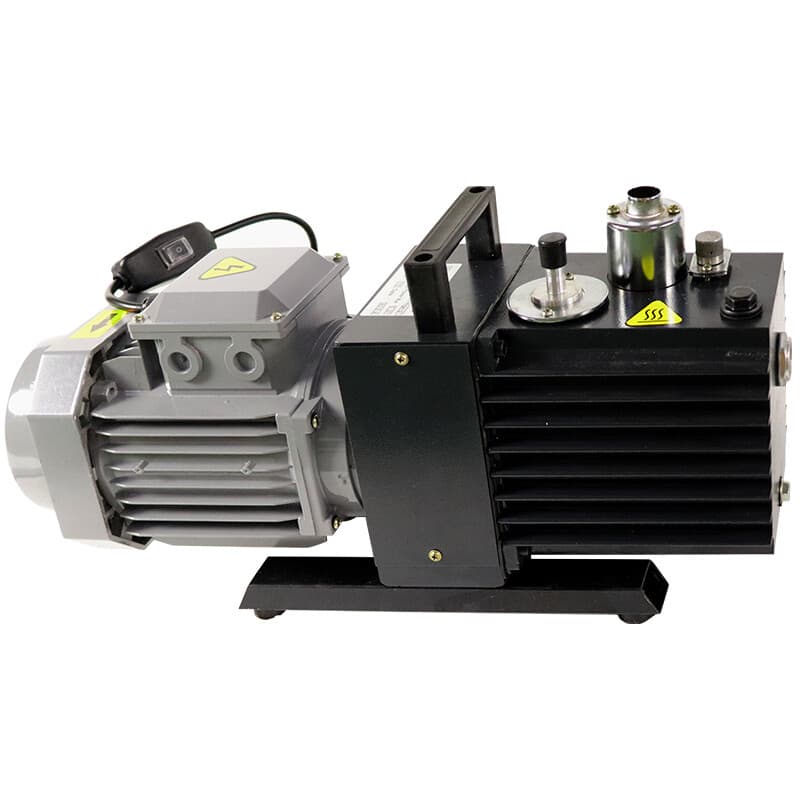

Two-stage oil-sealed rotary vane vacuum pump (2XZ-2), 220V, 370W motor, with gas ballast for solvent vapor removal.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The MTST 2XZ-2 is a two-stage, oil-sealed rotary vane vacuum pump built in a direct-connection configuration. It produces vacuum for processes such as vacuum drying, filtration, and container evacuation, and can serve as a backing pump for booster, diffusion, molecular, or titanium pumps.
The compact housing measures 488 x 145 x 280 mm, and the unit is rated for relatively low noise at 60 dB. A gas ballast feature supports removal of solvent vapor during operation. The pump is intended as a vacuum source and is not designed to function as a compression delivery pump.
This pump suits laboratory and processing setups that require a moderate-capacity vacuum source for drying and evacuation tasks.
A rotary vane vacuum pump uses an eccentrically mounted rotor fitted with vanes that move radially under centrifugal and spring force inside the pump housing. As the rotor turns, the vanes sweep gas from the inlet to the oil-sealed outlet valve. The two-stage arrangement allows the unit to reach a higher vacuum than a single-stage design.
