A bench-top circulating water vacuum pump that uses a water jet to generate vacuum, with two suction taps, dual gauges, and a 15 L tank.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.

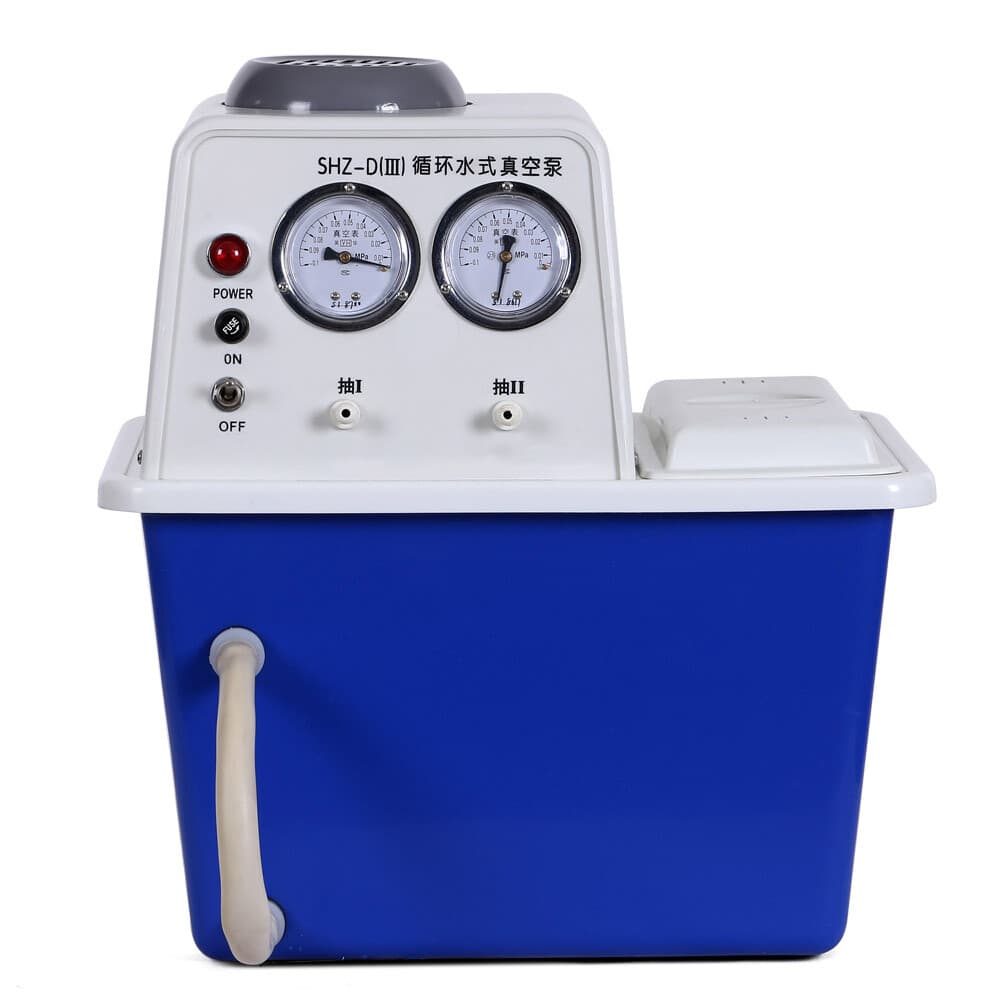

This is a laboratory circulating water vacuum pump (model SHZ-D(III)) that produces vacuum by drawing recirculated water through a jet device. It is configured with two suction taps and dual vacuum gauges, allowing two vacuum lines to run from a single unit.
The pump is built for general lab use where a clean, oil-free vacuum source is needed. Wetted parts including the pump head, impeller, and jet assembly are made from corrosion-resistant materials, and the body uses anti-corrosion construction with 1Cr18 stainless steel components.
It is intended for use in research and small-scale process settings such as university labs, chemical and pharmaceutical work, biochemistry, and food testing.
The pump circulates water from the onboard tank through a jet device. As water passes through the jet at speed, it entrains air and creates a vacuum at the suction nozzles. Because the pump head sits directly in the water tank, no separate water-diversion plumbing is required, and the recirculated water can be cooled with ice to improve vacuum performance.
