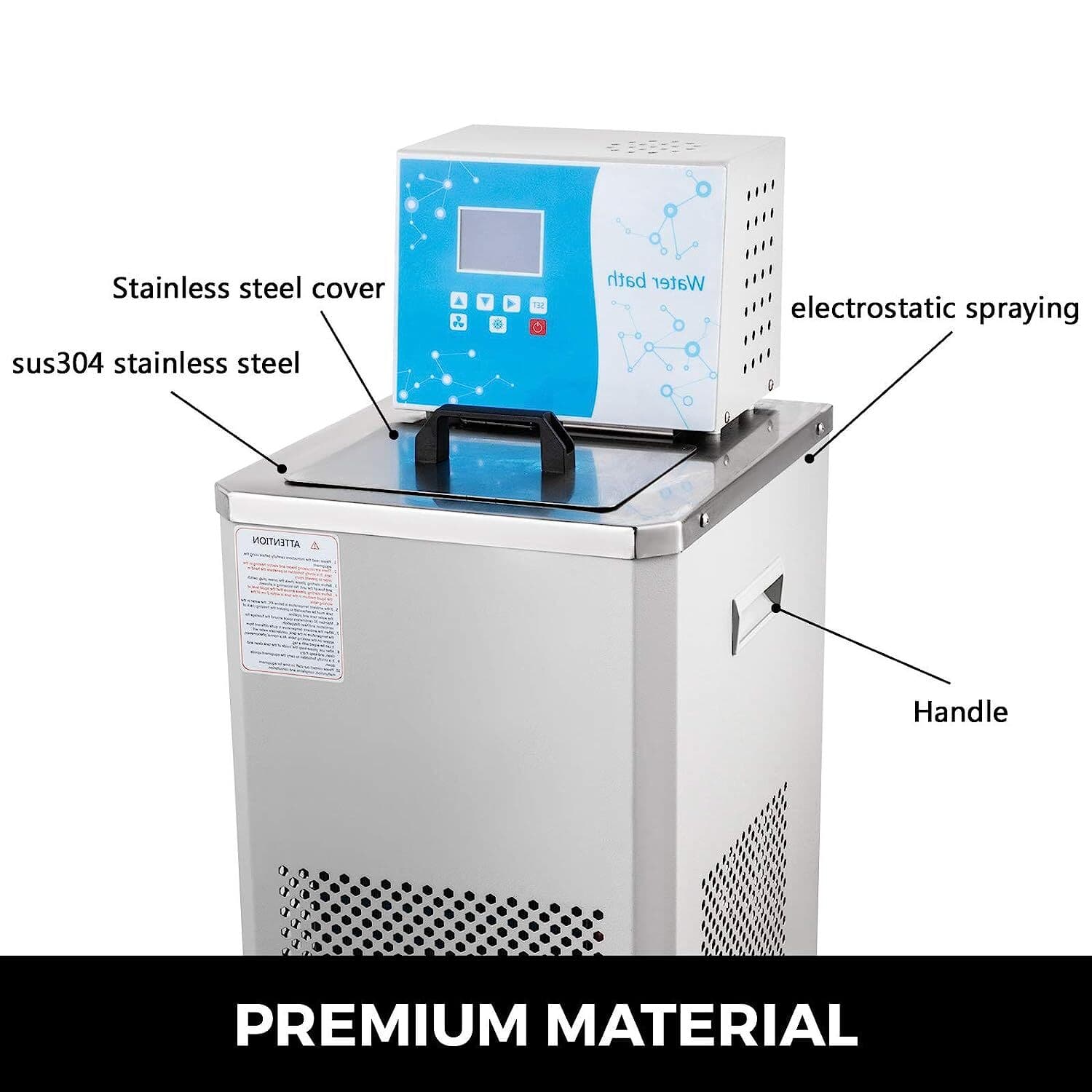

1 / 25The MTST BD-0506 is a heated and refrigerated thermostatic bath and circulator built for applications requiring tight temperature control. It holds a 6L working volume and uses a PT100 sensor with intelligent PID control to maintain temperature stability in the range of ±0.005 to 0.01°C, with display resolution to 0.001°C.
Depending on configuration, the unit covers a temperature range from a low-temperature setpoint (-5, -10, -20, -30, or -40°C) up to 99°C. It supports both water and oil as working fluids and circulates via an internal loop to keep tank temperature uniform.
The BD-0506 suits laboratories in research, chemistry, biology, and physics, as well as calibration work for thermometers and other temperature-measuring instruments.
A fully enclosed compressor provides refrigeration while an integral heater handles warming, and a PT100 sensor feeds a PID controller that adjusts parameters to the chosen medium. An internal circulation system moves the working fluid through the tank to keep temperature uniform, and a software correction routine aligns the displayed value with the measured temperature.
Model: BD-0506,-5℃~100℃,6L
Heated and refrigerated thermostatic bath/circulator with a 6L tank, ±0.005–0.01°C stability, and a temperature range reaching from sub-zero down to -40°C up to 99°C.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
