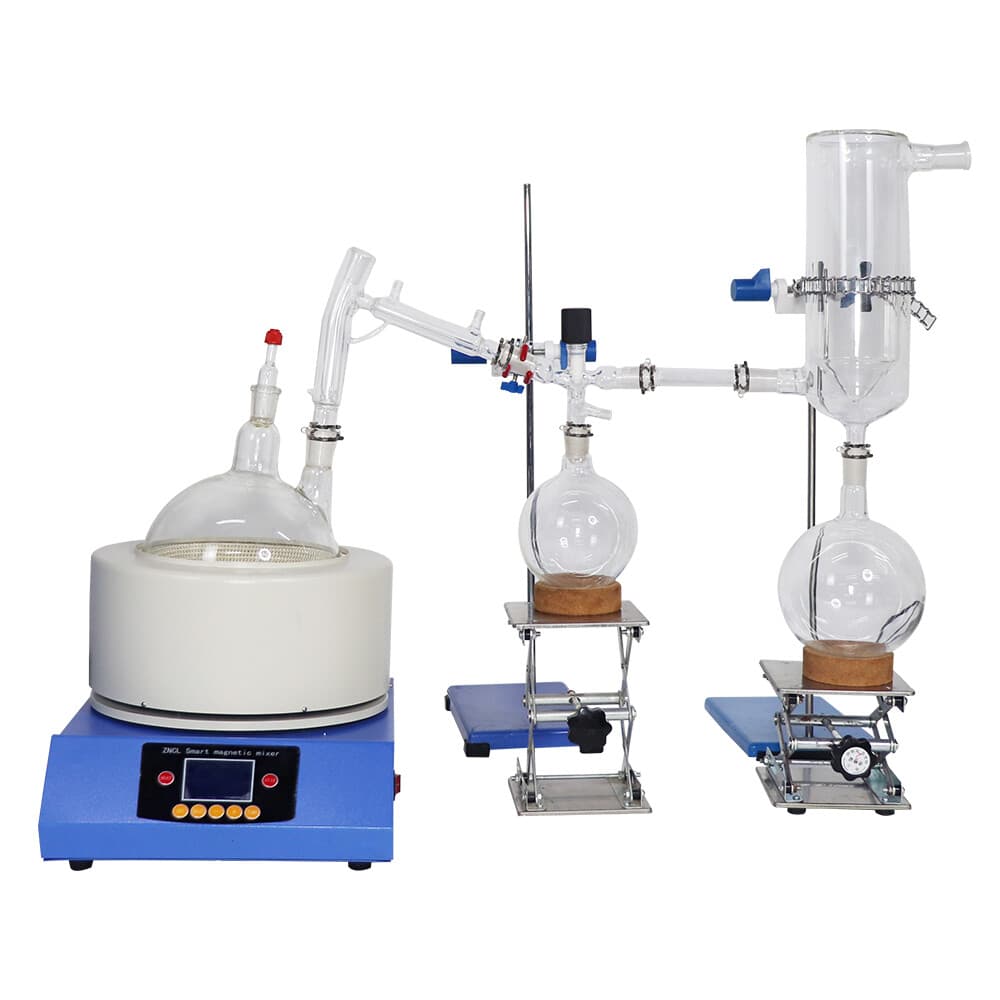

1 / 13The ZZKD SPD-5L-C is a 5L short path distillation system built from high borosilicate glass. It pairs a 5000mL boiling flask with a distillation head, single cow receiver, 2000mL receiving flask, and a cold trap fitted to a 2L round bottom flask. The kit runs on a 110V 60Hz supply.
Heating and stirring are handled by the zNCL-T-5L magnetic stirring heating mantle rated at 900W, with a stirring power of 0.04 kW. A digital thermometer is included for monitoring process temperature, and the system is designed to operate under vacuum to a rated degree of 0.098 MPa.
The kit suits laboratory tasks such as separation, solvent recovery, and concentration where short path distillation is required.
Material in the 5000mL boiling flask is heated by the magnetic stirring mantle while the system is held under vacuum. Vapor travels a short path through the distillation head, condenses, and is directed through the single cow receiver into the 2000mL receiving flask. A cold trap on a 2L round bottom flask captures lower-boiling vapors before the vacuum line.
Model: SPD-5L-C
A 5L short path distillation kit with high borosilicate glassware, a 900W magnetic stirring heating mantle, cold trap, and digital thermometer for 110V operation.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
