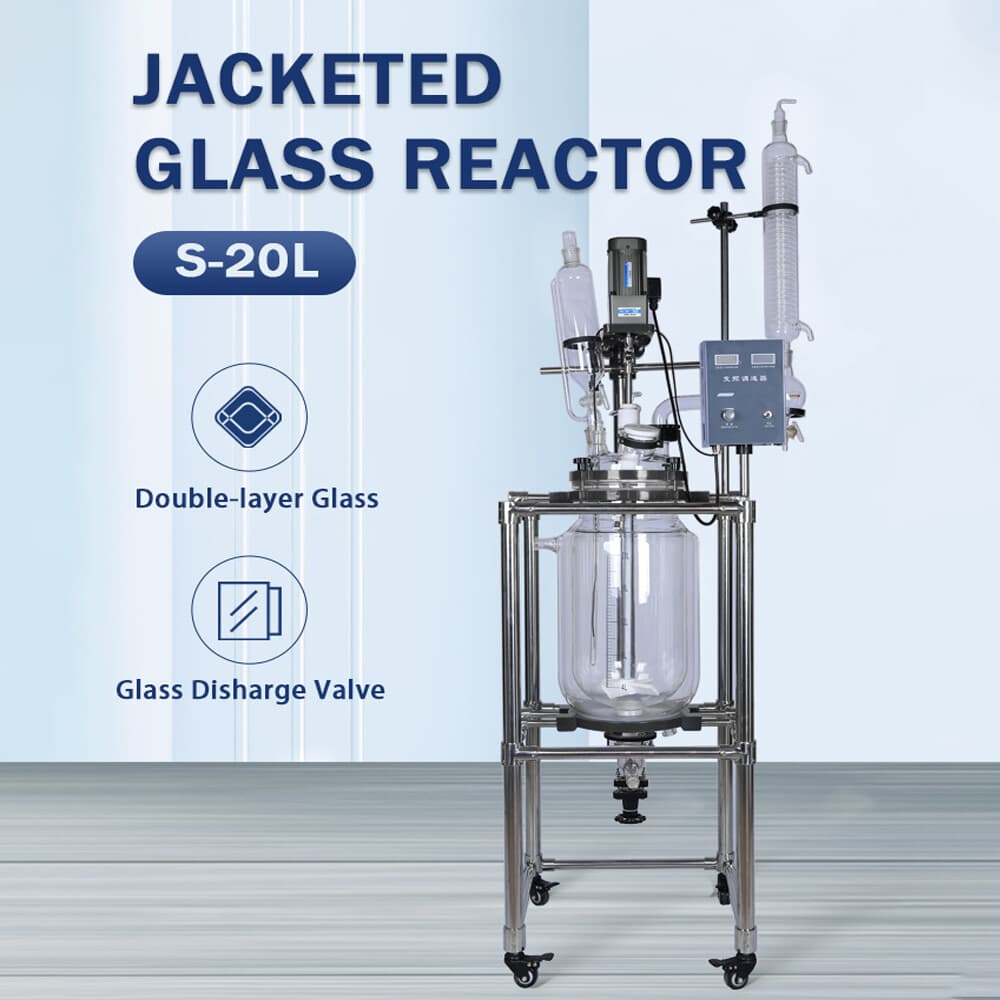

1 / 16The MTST S-20L is a 20-liter double-layer glass reactor built for stirred chemical reactions under controlled temperature. The reaction medium sits in the inner glass vessel, while the surrounding jacket circulates a heat-transfer fluid, allowing the contents to be heated or cooled depending on the circulated source.
The vessel is made from GG17 high-borosilicate glass for chemical and thermal resistance, and is supported on a 304 stainless steel frame. A bottom PTFE glass discharge valve lets solid and liquid material be released from the base of the vessel.
This reactor suits pilot- and bench-scale work in fine chemical synthesis, bio-pharmaceutical development, and materials research where controlled stirring and temperature are required.
The inner glass vessel holds the reaction medium while a circulated fluid (refrigerant, hot water, or hot oil) passes through the surrounding jacket to heat or cool the contents. Under constant-temperature conditions the mixture is stirred and can react at normal or reduced pressure, with optional reflux. When the process is complete, material is drained through the bottom discharge valve.
Model: S-20L
20L double-layer (jacketed) glass stirred reactor with GG17 borosilicate vessel and a 304 stainless steel frame for temperature-controlled reactions.
