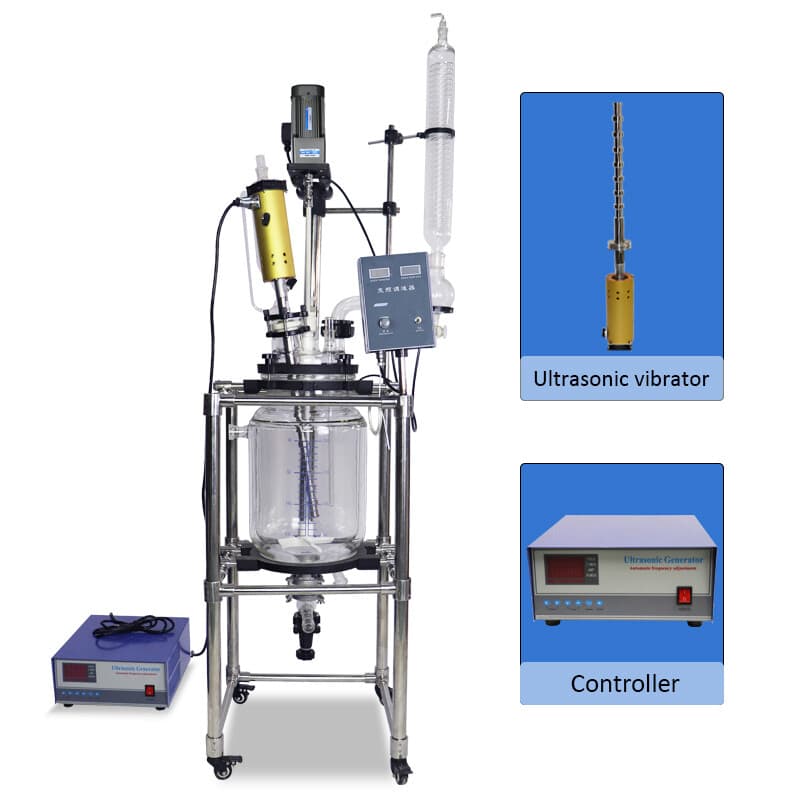

The MTST U-S-20L is a double-layer (jacketed) glass reactor with a 20L reaction kettle and an integrated ultrasonic processing system. It combines mechanical overhead stirring with a titanium-alloy ultrasonic head, allowing samples to be mixed and ultrasonically processed within the same vessel.

Stirring is driven by a 120W motor with a 12mm shaft and a speed range of 0 to 600 rpm (up to a maximum of 1300 rpm), with rated torque of 1200 g·cm. The ultrasonic unit operates at 20kHz ±5% with adjustable power and a built-in timer.

This unit suits laboratories and processing facilities that need combined stirring and ultrasonic treatment for chemical mixing, reactions, and sample preparation. The reactor capacity can be specified in 10L, 20L, 30L, 50L, and 100L configurations.

How It Works

The jacketed glass vessel allows a heat-transfer fluid to circulate around the reaction chamber for temperature management while the overhead motor turns the stirring shaft. The titanium-alloy ultrasonic head delivers high-frequency vibration into the liquid at 20kHz, with power adjustable across 16 levels and a programmable run time, supporting mixing and ultrasonic processing in a single operation.

Key Features

• 20L double-layer glass reaction kettle, with 10L, 30L, 50L, and 100L capacities available
• 120W stirring motor with 0–600 rpm range (max 1300 rpm) and 1200 g·cm torque
• 12mm stirring shaft for mechanical agitation
• Integrated 20kHz ±5% ultrasonic system with titanium-alloy vibrating head
• Ultrasonic power adjustable 0–100% in 16 levels with a 0–59 min 59 sec timer
• Ultrasonic internal overheat protection rated at 65°C
• 110V power supply, with 220V optional
