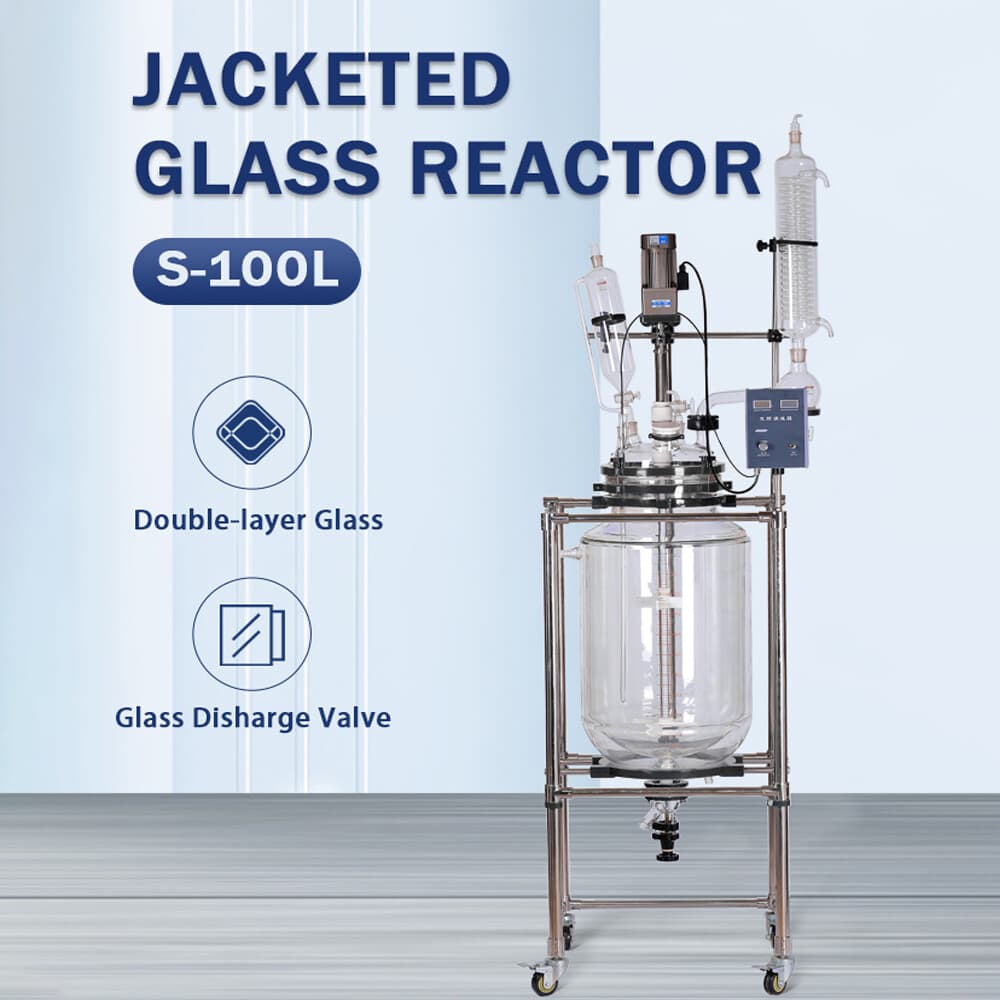

1 / 24The MTST S-100L is a double-layer stirred glass reactor built around a 100L GG17 high-borosilicate reaction flask. The inner chamber holds the reaction medium while the surrounding jacket circulates a heat-transfer fluid, allowing the contents to be heated or cooled depending on the source supplied.
The unit is mounted on a 304 stainless steel frame and includes a PTFE bottom discharge valve for releasing solid or liquid material. With a stated reaction temperature range of -80 to 250 C and operation under normal or reduced pressure, it suits synthesis, mixing, and reflux work in chemical, pharmaceutical, and materials labs.
It is intended for laboratory and pilot-scale users who need controlled, temperature-regulated stirred reactions in a transparent vessel.
A heat-transfer fluid circulates through the glass jacket while the inner flask holds the reaction medium. Heating or cooling is set by the temperature of the circulated fluid, and the motorized stirrer mixes the contents. Reactions can run at normal or negative pressure, and finished material is drained through the bottom PTFE discharge valve.
Model: S-100L
100L dual-jacketed borosilicate glass reactor with stirring and a temperature range of -80 to 250 C on a stainless steel frame.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
