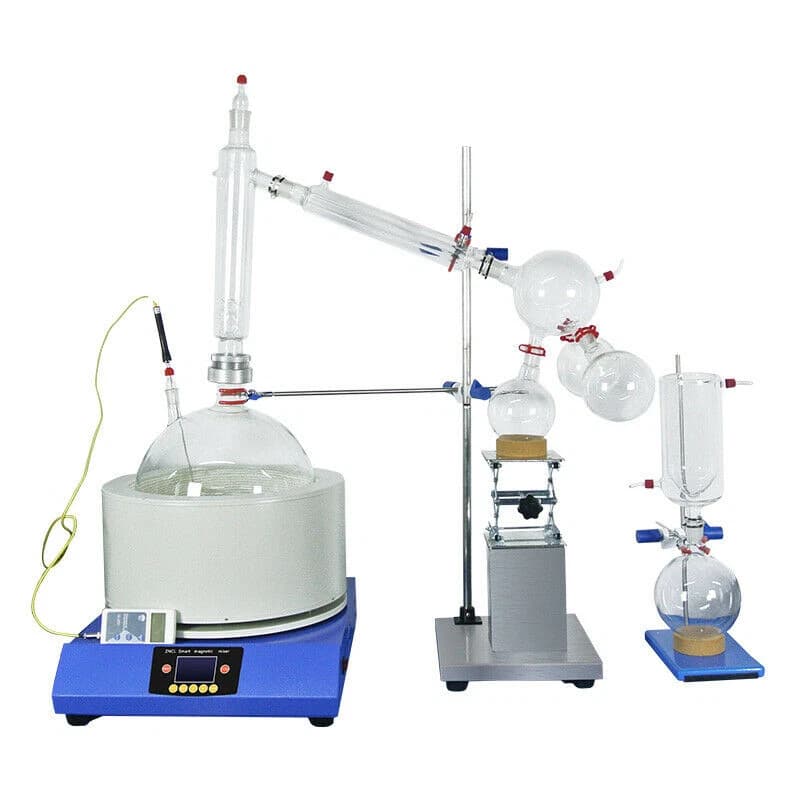

Model: SPD-20L
20L short-path distillation system in high borosilicate glass, with a temperature range up to 380°C and evaporation rate over 3 L/H.
This equipment is sold for lawful use only. Buyer is responsible for compliance with all applicable regulations.
The MTST SPD-20L is a short-path distillation system built for production-scale processing. It pairs a 20,000 mL reaction flask with three 1,000 mL receiving flasks, allowing larger batch volumes and fewer runs to reach throughput targets.
Constructed from high borosilicate glass, the unit operates across a temperature range from ambient to 380°C with ±1°C accuracy. An evaporation rate above 3 L/H and rotation speed adjustable from 0 to 180 rpm support distillation of crude material under vacuum.
This system is intended for labs and extraction operations that handle significant solvent or crude volumes. A properly sized heating mantle, vacuum pump, and recirculating chiller are required to support the 20L flask and condenser.
Material in the heated reaction flask is brought to temperature under vacuum down to 0.098 MPa, lowering the boiling point of target compounds. Vapors travel a short path to the condenser, where they are cooled and collected in the receiving flasks, separating fractions based on volatility. A main PTFE seal maintains the vacuum.
